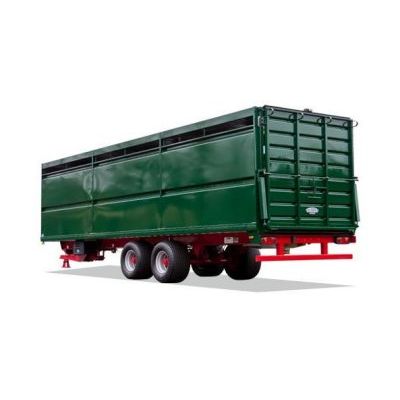

Houghton - Country Line Single Deck

Key Features

• Aerodynamic, clean-sided modular design
• Anti-slip alloy floor welded and watertight
• Light, strong monocoque structure gives greatest legal load capacity of any tractor drawn
• Slurry tank as standard

Alternatives

• Country Line Two Deck
• P-Line Single Deck
• Professional Single Deck

• Length: From 4.87m (16`) to 10.36m (34`)
• Internal Height: 2.13m (7`)
• External Width: 2.55m (8`4")

Standard Features

• All alloy rear loading gates using horizontal design for safety
• Alloy slurry tank
• All steel components hot-dip galvanised or zinc plated
• Anti-slip alloy floor
• Axle: 10 stud commercial
• Brakes: Commercial cam brakes operated by hydraulics
• Capacity: 14 tonnes/16 tonnes/18 tonnes
• Draw Beam: Sprung draw bar (increased ride stability)
• Easy clean design
• Finish: Shot blasted and painted all over using two pack Nexa paint
• Fixed alloy internal dividing gates
• Fixed floors welded all round
• Hand Brake: Mechanical
• High-grade alloy monocoque construction
• LED marker lights to comply with legal requirements
• Lights: Marker lights to comply with legal requirements
• Matt black rear ramp to prevent startling through sun glare
• Nexa Autocolor Turbo Plus 2-pack paint system in one colour of your choice
• One gate per deck supplied to suit each 3.66m length of transporter
• One light per pen externally switched
• Open ventilation to top deck
• Spring-assisted alloy-planked rear door with smooth exterior
• Stainless steel hinge pins
• Strobe light to rear
• Suspension: Commercial Multi leaf springs
• Towing Eye: Ø50 Heavy duty eye
• Unique internal width of 2.53m enables larger animals to stand crossways
• Wheels: 455 x 45 x 19.5 Super single - various options available

• 555/45 - 17 Tyres - off road flotation tyre for up to 50mph tractor road use
• ABS braking systems
• Air Brakes
• Air over hydraulics braking
• External tie rings
• Extra Groom’s door to side of container
• Extra inspection door
• Extra internal lights
• Extra large inspection door
• Extra LED top marker lights across rear
• Extra light options
• Ferry lashing rings
• Fixed gates with 500mm side partitions for increased operator safety (for dual purpose)
• Flaps closable from inside
• Galvanised chassis option
• Houghton-Parkhouse, colour coded pressed alloy side guards
• Inspection door
• Insulated roof
• Internal/external tie rings
• Moveable cattle gates
• Moving cattle gate (for dual purpose)
• Pull out step to inspection door
• Rear loading lights - LED or Halogen
• Spare wheel carrier and wheel
• Stop/indicators to rear LED Hamburger
• Towing eyes
• Transporter painted in one colour basecoat and lacquer giving a metallic finish using Nexa Autocolor Turbo Plus paint system
• Transporter painted in two colors using Nexa Autocolour Turbo Plus paint system
• Tri axle options
• (N.B. - Some features subject to compatibility)
