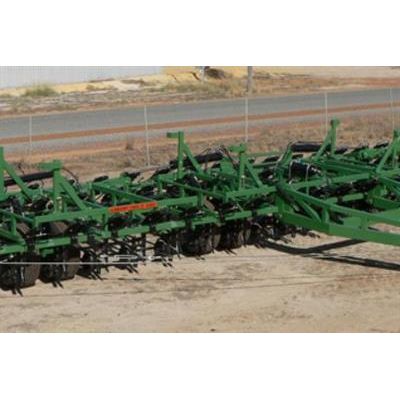

Ausplow - Model D260-32 -DBS Auseeder

SHARE

The D-260 Series DBS Auseeders are available in 11 models. The 260mm (10") tine spaced Auseeders have a transport width ranging from 5.86m (19`03") to 7.53m (24`09") with working widths from 6.24 (20`06") to 18.20m (59`09").

Most popular related searches
tine spacings
tine
coulter plow
  • Dig Width (metres): 8.32
  • Dig Width (feet): 27` 04"
  • Number of tines: 32
  • Tine spacing (mm): 260
  • Tine spacing (inches): 10"
  • Number of rows: 3
  • Underframe clearance (mm): 730
  • Transport width (metres): 5.86
  • Transport width (feet): 19` 03"
  • Transport height (metres): 3.31
  • Transport height (feet): 10` 11"
  • Recommended engine power (Kw): 167
  • Recommended engine power (Hp): 224
  • Max work depth (mm): 230
  • Number of wheels: 6
  • Tyres: 385/65R 22.5
  • Frame sections: 3
  • Frame tilt modules: (N/A)
  • Weight on drawbar - working (Kg): (N/A)
  • Weight on drawbar - transport (Kg): (N/A)
  • Approximate weight base (Kg): 7000
  • Hose and liquid kit weight (Kg): 600
  • Coulters weight (Kg): 850
  • Total maximum weight (Kg) (Approx): 8450
