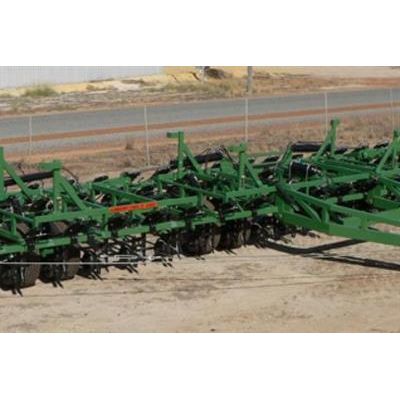

Ausplow - Model D381-28 -DBS Auseeder

SHARE

The D-381 Series DBS Auseeders are available in 6 models. The 381mm (15") tine spaced Auseeders have a transport width ranging from 6.27m (20`02") to 7.70m (25`02") with working widths from 10.66m (35`00") to 18.28m (60`).

Most popular related searches
tine spacings
tine
coulter plow
  • Dig Width (metres): 10.66
  • Dig Width (feet): 35` 00"
  • Number of tines: 28
  • Tine spacing (mm): 381
  • Tine spacing (inches): 15
  • Number of rows: 3
  • Underframe clearance (mm): 730
  • Transport width (metres): 6.24
  • Transport width (feet): 20` 06"
  • Transport height (metres): 4.49
  • Transport height (feet): 14` 09"
  • Recommended engine power (Kw): 146
  • Recommended engine power (Hp): 196
  • Max work depth (mm): 230
  • Number of wheels: 6
  • Tyres: 385/65R 22.5
  • Frame sections: 3
  • Frame tilt modules: (N/A)
  • Weight on drawbar - working (Kg): (N/A)
  • Weight on drawbar - transport (Kg): (N/A)
  • Approximate weight base (Kg): 7400
  • Hose and liquid kit weight (Kg): 550
  • Coulters weight (Kg): 850
  • Total maximum weight (Kg) (Approx): 8800
