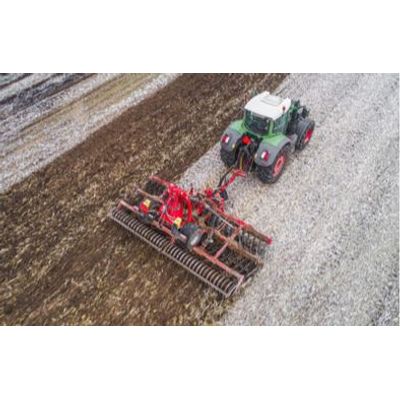

Akpil - Model BISON XL -Disc Harrow
FromAkpil
Characteristics: Notched disc Ø 610 × 5 mmtype II(high quality discs –manufactured byAKPIL), Spacing between disc rows 100 cm, Transverse division of discs 25 cm.
Most popular related searches
disc harrow
spring tine harrow
tine harrow
harrow
tractor wheel
tractor cab
spring harrow
agriculture machine
tine
tractor
Extra in TRAILED VERSION:
- hydraulic accumulators for actuators, G
- LED lighting – back H
- hydraulically lifted transport wheels 500/50-17 – tyre width50 cm
- pneumatic dual circuit brakes,
- coupling bar CAT. III – L = 825
- required 2 pairs of hydraulic outputs (suspended version)
- required 3 pairs of hydraulic outputs (trailed version)
- mechanical adjustment of disc pitch angle PATENT, A
- mechanical adjustment of disc rollers to each other, B
- rubber protection of each disc, 40 × 210 mm,
- maintenance-free bearing with cartridge seal,
- hydraulic depth adjustment on the roller, C
- mechanical working depth memory,
- hydraulic folding for transport,
- hydraulic and mechanical roller locking for transport, D
- longitudinal reinforcement of supporting profiles (5.5 m) and(6.0 m) E
- coupling pins CAT. III,
- transport width 2.5 m,
- double-braided hydraulic hoses 330 bar,
- hydraulic locks for all actuators (standard and optional)
- barrel bearing in a dust protection housing for rollers F
- Toothed discs 560mm x 5mm (each) type I 56X5I
- Toothed discs 610mm x 5mm (each) type I 61X5I
- Toothed discs 610mm x 6mm (each) type I 61X6I
- Toothed discs 660mm x 6mm (each) type I 66X6I
- Toothed discs 560mm x 5mm (each) type II 56X5II
- Toothed discs 610mm x 6mm (each) type II 61X6II
- Toothed discs 660mm x 6mm (each) type II 66X6II
- Toothed discs 560mm x 5mm (each) type III 56X5III
- Toothed discs 610mm x 5mm (each) type III 61X5III
- Toothed discs 610mm x 6mm (each) type III 61X6III
- Toothed discs 660mm x 6mm (each) type III 66X6III
- Disc scraper (each) ST
- Metal covers for bearings (each) OM
- Polyurethane shock absorber – plate protection (each) 4.0m-128pcs; 4.5m-144pcs; 5.0m-160pcs; 5.5m-176pcs; 6.0m-192pcs AP
- Spring tine frame for spring tine harrow (price per meter) PS
- Spring tine harrow cover (each) 4.0m-20pcs; 4.5m-22pcs; 5.0m-26pcs; 5.5m-28pcs; 6.0m-30pcs NP
- Furrow-scraper for roof frame (price per meter) PSK
- Reinforced scraper for stony soils of segment harrow (price per meter) SWS
- Rubber harrow scraper (price per meter) SG
- Front leveling strip with hydraulic adjustment (price per meter) LW
- Notched disc ø300mm with amortization and hydraulic adjustment (price per meter) WN
- Chassis with drawbar + pneumatic brakes (additional 1 pair of hydraulic outlets required) PD
- Fold-in chassis with drawbar + pneumatic brakes (additional 1 pair of hydraulic outlets required) PDD
- Internal chassis + drawbar + pneumatic brakes (additional 1 pair of hydraulic outlets required) PWS
- Wider axle spacing SO
- Hydraulic brakes (please specify in order) HH
- Flexible tine screen between disc harrow and finishing roller (EZW)
- Flexible tine screen behind finishing roller (suspended version) (EZZ)
- Mechanically adjustable side deflectors with rubber protection (2 pcs.) D
- Mechanically adjustable plate side deflectors with rubber protection (2 pcs.) DT
- Screw-adjustable drawbar DS
- Hydraulically adjustable drawbar DH
- Electric pilot for hydraulic control from tractor cab (solenoid valves reducing required hydraulic outlets to 1 pair) PE
- LED lighting (rear) – suspended version OL
- LED lighting (front) – towed version OLP
- Warning plate (4 pcs.) T4
- Poplar seeder “POPLON” with holder PN
- Wedges with wheel holders K
- K80 ball hitch (80mm) (for Hitch coupling) – only available with option no. 32 ZK
- Eye coupling (for Hitch coupling) ø40 or ø50 or ø55 – only available with option no. 30 Z40 / Z50 / Z55
- Wheel fenders BL
- Split rollers for easy turning (see illustration on page 75) WDZ
- Drawbar extension by 1m (for twin-wheel tractors) P
- Hitch bar CAT. III – L=965mm BZ
- Double front copying wheels (version with chassis) (set) KP
- Hydraulic adjustment of support wheels height HPH
- Support foot (for storing folded machine) (suspended version) SP
- Oil distributor (even folding and unfolding of right and left disc harrows) DZT
- Oil distributor (even folding and unfolding of right and left finishing rollers)
- Tractor wheel cultivators SPK
- Holder for poplar seeder with platform and ladder (version with copying wheels max. tank width 500mm, version without wheels 700mm)
