LandForceDisc Ridger

SHARE

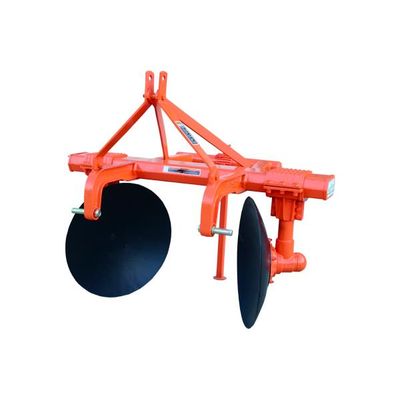

Landforce Disc Ridger is an implement, which cuts and turns the soil in tow opposite directions simultaneously for forming ridges. Landforce Disc Ridger is an implement, which cuts and turns the soil in tow opposite directions simultaneously for forming ridges. It is also used for earning up operation.

Most popular related searches

Disc Ridger Benefit
Landforce invent Disc Ridger. It is an implement, which cuts and turns the soil in two opposite directions simultaneously for forming ridges. It is also used for earthing up operation.

PARKING STAND
Solid Parking Stand

DISC
The Disc Hubs are of special design which protects the bearing from water and can be easily operated in each and every type of Soil.

FRAME
It has heavy duty Tubular Frame

HITCH
Three point hitch are used to transmit shifting forces from the tractor to the implement.

MODEL: DPS2

  • TUBULAR FARM: SHEET 182 X 100 X 5 MM
  • NO. OF DISCS: 2
  • DISC SIZE: 670 MM X 4 MM
  • MAX. WIDTH: 1100 MM
  • WORKING DEPTH: 330 MM
  • DISC TYPE: PLAIN
  • AXLE TYPE: SPINDLE
  • MOUNTED CATEGORY: CAT-ll
  • DISC ANGLE: ADJUSTABLE
  • BEARING HUBS: 2
  • TRACTOR POWER: 45 & ABOVE
  • WEIGHT (APPROX.): 210 KG.
