True-Tandem - Model 345 - Disk Harrow

SHARE

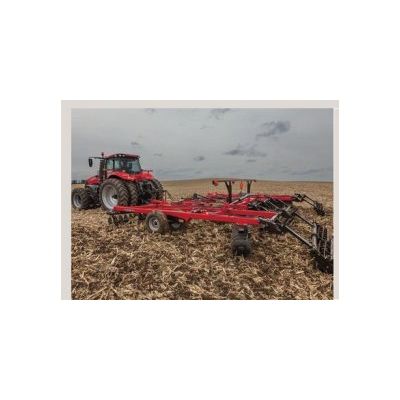

Case IH True-Tandem 345 disk harrows, with working widths of 22 to 47 feet, provide straight, easy pulling for primary tillage, seedbed preparation or chemical incorporation.

Most popular related searches
disc harrow
tandem disc harrow
harrow
tillage seeding
soil conditioning
primary tillage
seedbed preparation
tillage operation
soil improvement
seedbed
  • Working Width: 22 to 34 ft (6.7 to 10.4 m)
  • Blade Spacing: 7.5 or 9 in (190 or 229 mm)
  • Blade Size: 22 in (560 mm)
  • Horsepower Required: 220 - 485 hp (depending on size)
  • Available in 5 single fold sizes: 22 ft (6.7 m), 25 ft (7.6 m), 28 ft (8.5 m), 31 ft (9.4 m), and 34 ft (10.4 m)
  • Symmetrical, 18 degree gang angle and equal number of blades on either side of machine, providing uniform pulling pressures and residue mixing
  • Earth Metal Disk Blades, 30% stronger other industry blades, providing durability and decreased downtime
  • New gang mounting design with new plate and bolt, and cast-iron nodular spools
  • Increased frame strength with 16 inches of length added to the tough pull through frame design, welded cylinders, and frame-mounted rockshaft and gauge wheels
  • Active Hydraulic Double-edge Rolling Reel for improved soil conditioning
