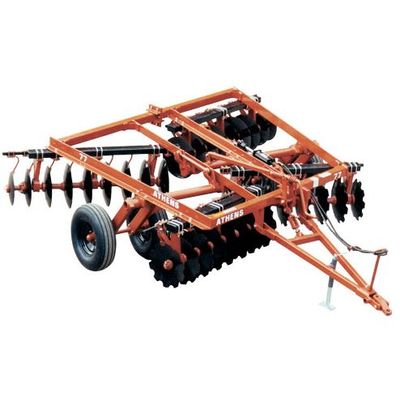

Athens - Model 76/77 - Double Offsets Disk Harrow
The MAINFRAMES of the 76/77 combine structural steel tubing and strength angle. The Model 77 Main Frame is a two-piece bolt together frame where the Model 76 is a one-piece frame. Structural steel angle is used for the side-members allowing the frame to flex so it can follow the contour of the field, reducing stress on the frame.
STANDARD EQUIPMENT
- Disc Blades - 22" or 24" Diameter
- 1 ¼" Square Steel Axle
- Relube QUADRASEAL Ball Bearings
- Adjustable Angle of Cut - 15° or 18°
- Disc Spacing - 9", 7 ½", or 9" Front & 7 ½" Rear
- Split Wheel Carriages
- 5 Lug Wheel Hubs & Rims
- Dual Wheels on all 77’s and 14` 6" and 15` 1" 76’s
- Heavy-Duty Scrapers
- Cover Discs with Scrapers
- Reversible Tongue Clevis
- Self-Leveling Frame
- Gang Wrench and Tongue Jack
- Lifting Hydraulics Complete
- Mechanical Transport
OPTIONAL EQUIPMENT
- Rigid or Spring Bearing Hangers
EXTRA EQUIPMENT
- Dual Wheels – on 76’s, 8` 10" to 13` 5"
Choice of Discs
22" or 24" Cutout or Smooth Discs are offered on the Model 76/77. The disc blades are made from the highest quality steel for superior cutting and durability.
QUADRASEAL Relube Ball Bearings on the 76/77 mean long life and less downtime.
Both Rigid and Spring Bearing Hangers feature a Wear Plate which protects the front and the bottom-side of the Bearing Housing. The Rigid Bearing Hanger is for general purpose usage in normal field conditions. Spring Bearing Hangers with double-row tapered roller bearings provide maximum flexibility in rocky and uneven land.
