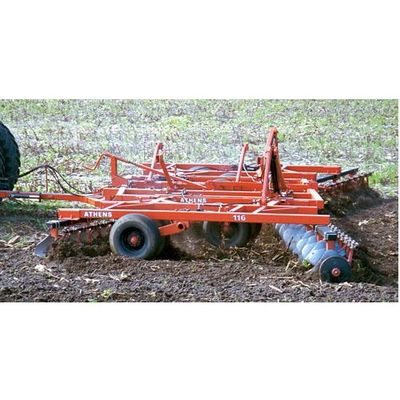

Athens - Model 116/119 - Double Offsets Disk Harrow
The Quadraseal Wheel Hubs are an exclusive ATHENS PLOW design for increased Bearing life and reduction of downtime. Our QUADRASEAL Wheel Hubs offer maximum protection from dirt and trash by combining a triple lip seal with a press fitted external trash flinger. The QUADRASEAL Bearings give added bearing life.
Model 116
- Quadraseal Ball Bearings
- Rigid Bearing Hangers with Wear Guards
- Disc Blades, 22” or 24” Smooth or Cutout
- 1 1/4” Cold Rolled Square Axle
- Spacing, 71/2”, 9”, or 9” Front and 7 1/2” Rear
- Single Tapered Disc on Front
- Double Tapered Discs on Rear
- Adjustable Cutting Angle, 15° or 19°
- Cover Discs with Scrapers
- Six Lug Wheel Hubs and Rims
- Self Leveling Frame
- Lifting and Folding Hydraulics
- Reversible Tongue Clevis
- Gang Wrench and Tongue Jack
Model 119
- Double Tapered Roller Bearings
- Spring Bearing Hangers with Wear Guards
- Disc Blades, 22” Smooth or Cutout
- 1-1/4” Cold Rolled Square Gang Axle
- Spacing, 9”
- Single Tapered Disc on Front
- Double Tapered Discs on Rear
- Adjustable Cutting Angle, 15° or 19°
- Cover Discs with Scrapers
- Six Lug Wheel Hubs and Rims
- Self Leveling Frame
- Lifting and Folding Hydraulics
- Reversible Tongue Clevis
- Gang Wrench and Tongue Jack
The Quadraseal Double Tapered Roller Bearingsprovide the most capacity in the industry. With this added capacity, the probability of overloading is virtually eliminated. The double tapered roller bearing has a triple-lip seal that runs on a hardened, polished surface and is protected by a heavy steel washer to avoid damage from wire and trash. Between the washer and the seal is a cavity filled with grease – an additional sealing element against dirt.
Quadraseal Ball Bearings
Strong relube QUADRASEAL ball bearings on the 116 cutout or smooth disc blades mean long life and less downtime.
Disc Blades
Available in 22 and 24 inch sizes.
Smooth blades are best utilized in normal field conditions. They are more economical, wear longer, weigh more than cutout blades, and cut crop residue evenly.
Cutout blades are more aggressive and trap residue better than smooth blades.
Narrow Transport
The Wings on the Athens 116/119 hinge from the Main Frame, resulting in narrower transport width and better flotation. The folding width is 11’ 6” (on 16’ 8” – 23’ 4” models) and 13’ (on the 26’ and 29’ models).
