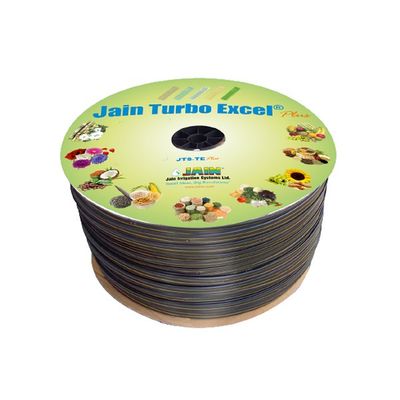

Jain Turbo Excel - Model Plus - Drip Lines
Innovative Cascade Labyrinth: Hydrodynamically designed Cascade teeth structure helps to create double flow regime viz. central curving flow and turbulent cyclone in the dripper.This helps in continuous flushing of particles. Prevention of Sand Suction Weir structure to prevent entry of sand particles in flow path. Manufactured With Most Modern, State-Of-The-Art Equipment It´s computerised continuous online quality control monitors emitter spacing and precision in outlet drilling. Thus ensures reliable quality and consistent performance. Flexibility in Color Selection Black- for agriculture, Brown - for landscape application, White - for greenhouse application, Purple- for reclaimed water application.
Most popular related searches
drip line
horticulture plant
turf irrigation
row crop
biofuel crop
irrigation
greenhouse nursery
row crop spacing
apple
landscape turf
- Three Dimensional Inlet Filter Unique 3-D filtration surface (having length, width and depth) enable clog free operation even under high clog risk conditions.
- Laser Drilled Outlet Hole Precision laser drilled outlet gives uniform and clear opening.
- Marked With Two Parallel Yellow Stripes `Twin- Line®´ Symbol of quality. It also helps to ensure upright positioning of the dripper to provide better clog resistance.
- Available in Spool Packaging Options with Hologram Freight saver option on carton spool Jain Turbo Excel® Plus with Hollogram
- Nominal Discharges : 0.8, 1.2, 1.6, 2.0 and 4.0 lph at 1 kg/cm² pressure (0.20, 0.32, 0.42, 0.53 and 1.06 gph at 14.2 psi pressure).
- Emitter Spacings : Standard emitter spacing of 15, 20, 30, 40, 50, 60, 75, 90, 100, 120 and 150 cm. Any other emitter spacings and group spacings can be supplied on demand.
- Sizes : Available 12, 16, 17, 18, 19, 20, 23 and 25 mm nominal diameter as per metric standard. Also available in 5/8″, 7/8″ , 9/8″ and 1-3/8″ nominal diameter as per US standard.
- Jain Turbo Excel Plus is recommended for irrigation of closely spaced row crops like sugarcane, cotton, banana, strawberry, vegetables,
- spices, biofuel crops, floriculture, etc.
- Recommended to use in greenhouses and nurseries.
- Suitable for landscape, shrubs and turf irrigation.
- Used for widely spaced horticultural plants like mango, citrus, guava, apple etc. in group spacings.
- Suitable for multi-seasonal applications.
- Suitable for surface as well as sub surface installations
