Gason - Model 3PL - Drop Centre Twin ...

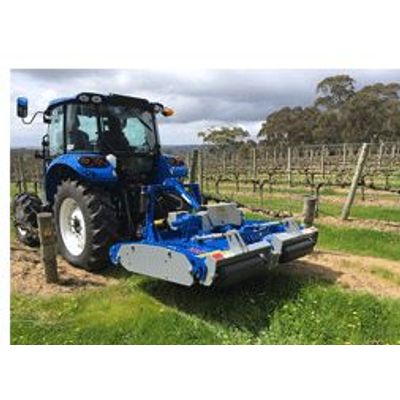

Gason - Model 3PL -Drop Centre Twin Rotor Vineyard Mower

FromAF Gason Pty Ltd

SHARE

Suitable for 45 to 90HP Tractors (Subject to Compatible Tractor Specifications). The 3PL Drop Centre Mower will accuratley follow ground profile of delved ("V") row form, cutting the full depth of "V" form and free floats to changing ground form. The Trailed Wide Drop Centre Mower suits orchard rows from 3.8m and wider. Height adjustable 220mm Diameter "Domed End" rear rollers. Three 220mm diameter, height adjustable "Domed End" front rollers. Mulch throw both sides with discharge deflectors or lift full side plates for discharge and mulching of small to medium size prunings <50mm.

Most popular related searches

vineyard mowing

6ft 2in

DC2R1800-3PL (GPN: 232525)

Width of cut - 1.8m (5`11")
Deck width - 1.88m (6’2")
Overall width - 2.18m (7’2”)
Trucking - 2.2w x 1.8d x 1.0h
Shipping - 2.2 x 1.8 x 1.0 (4.0 cubic m)
Weight - Approx. 980kg
PTO speed - 540rpm

6ft 6in

DC2R1930-3PL (GPN: 232375)

Width of cut - 1.93m (6`4")
Deck width - 1.98m (6’6")
Overall width - 2.28m (7’6”)
Trucking - 2.3w x 1.8d x 1.0h
Shipping - 2.3 x 1.8 x 1.0 (4.15 cubic m)
Weight - Approx. 990kg
PTO speed - 540rpm

7ft 2in

DC2R2080-3PL (GPN: 232774)

Width of cut - 2.08m (6`10")
Deck width - 2.18m (7’2")
Overall width - 2.48m (8’2”)
Trucking - 2.5w x 1.8d x 1.0h
Shipping - 2.5 x 1.8 x 1.0 (4.5 cubic m)
Weight - Approx. 1000kg
PTO speed - 540rpm

Twin rotor on centre hinge beam
Mulch throw both sides with discharge defectors
Full depth side-plates with rear discharge deflectors

Standard Features

Deck Material - 6mm Deck, fully welded
Deck Profile - Folded easy clean deck design
Gearbox - Comer Italian 90HP gearboxes
PTO Shaft - 6 Series PTO
Clutch - 4 Plate clutch with over-run
Blades - 100 x 9mm Swing back blades on hardened bushes
Linkage Mounting: Cat 2 - 3PL

Dual rear wheel kit
