Ecomatik - Model Type DD-S1 -Diameter Dendrometer
Diameter Dendrometer Type DD-S1 for measuring changes in diameter of plants. Thank you for purchasing an Ecomatik Dendrometer type DD-S1. This is a highly precise sensor for continuous measurements of diameter changes of small plants under both indoor and outdoor conditions.
This manual is written to help you install and operate your DD-S1 dendrometer with least difficulty and for desirable results. Please read it carefully before installing the sensor, and refer to it if you should have any difficulty with the sensor in the future.
The dendrometer is the sensor part of a measuring system. This means that the dendrometer should be connected to a data logger for continuous data recording. The dendrometer is compatible with the most data logger types. At Ecomatik a low-cost, special for dendrometers developed DL18 logger is available

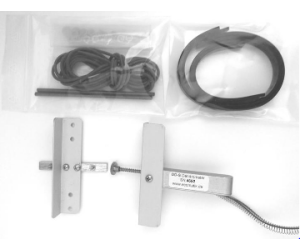

As shown below, the DD-L1 dendrometer consists of:
- 1 Sensor with 5 m cable. The cable length is extendable to 100 m
- 1 Frame (incl. threaded rods, nuts, washers) for fixing the sensor onto the stem/branch
- 1 Piece UV-resistant perforated rubber belt
- 1 Piece UV-resistant rubber cord, for pull release fixation of the sensor cable
Please contact us should you miss anything of these items.
The standard cable length is 5 m. if you ordered cable extension, the cable length is the ordered extension + 5 m.
To meet the requirements of different loggers, there are 2 different types of cables: cable with plug and cable without plug. Cable with plug can only be connected to Dendrometer Logger DL18. Cable without plug can be connected to other loggers.
