Ecomatik - Model Type DF4 -Fruit Dendrometer
Fruit Dendrometer (Type DF4) For continuous measurements of diameter of fruit and vegetables. Thank you for purchasing an Ecomatik Dendrometer type DF1. This is a highly precise sensor for continuous measurements of diameter changes of fruits and vegetables under both indoor and outdoor conditions.
This manual is written to help you install and operate your DF4 dendrometer with least difficulty and for desirable results. Please read it carefully before installing the sensor, and refer to it if you should have any difficulty with the sensor in the future.
The dendrometer is the sensor part of a measuring system. This means that the dendrometer must be connected to a data logger for continuous data recording. The dendrometer is compatible with the most data logger types. At Ecomatik a low-cost, special for dendrometers developed DL18 logger is available.
The standard cable length is 5 m. if you ordered cable extension, the cable length is the ordered extension + 5 m.

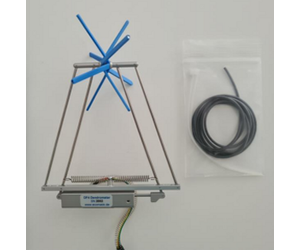

As shown below, the DF4 dendrometer consists of:
- 1x Sensor with fruit gripper, 5 m cable
- 1x Piece re-usable UV-resistant rubber reusable to fix the sensor cable at the branch/stem for strain relief.
