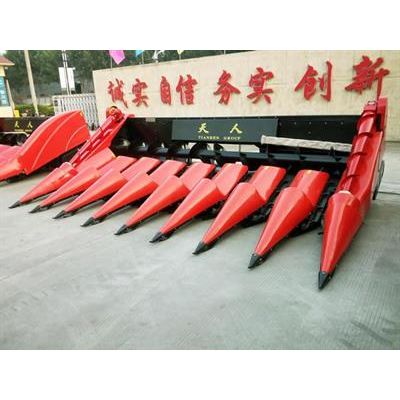

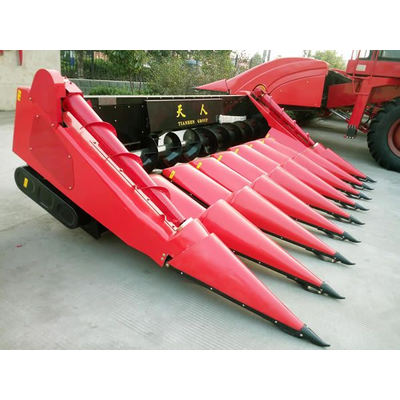

Tianren - Model TR1688-8 -Eight Rows Corn Header

• Patented Compound multiple blades structure works stably when gathering cobs and cutting cornstalks, reduce ear damage.
• Patented small tilt angle techniques stops corn cob loss and able to pick up the cob 20 cms higher than ground.
• Hoods are made by glass fiber reinforced plastic, able to reduce the shake and noise, work stably under low temperature.
• Separate safety clutches are used on each row unit to ensure the high reliability.
• Customized Rows, row spacing, fully compatible with John Deere, Case, CLAAS combine harvesters, easy to mount
• Customized to suit for two different row spacing in the same cornfields.

FLAIL CHOPPER
Residue Treatment System

• Flail chopper integrated under the header like a blade
• Less HP required than Hydraulic Straw Recycle Mechanism

Stalk cuts into pieces

• For future nutrient absorption, to make the residues valuable again
• Superior residue and stalk processing with even spread distribution

• Model: TR1688-8
• Brand: Tianren
• Number of rows: 8
• Regular row spacings (mm): 520,540,650,670, 690,700,750
• workable row spacings range (mm): ±50
• Number of knives on stalk rolls: 5
• Feeding quantity (kg/s): ≥ 5.0
• Weight of each row (kg): 180
• Grain loss rate: ≤2%
• Compatibility: John Deere, Case, Claas etc
• The minimum corn cob height from field(mm): 200
• Harvesting efficiency(acre/h): 1.6-3.3
• Flail chopper: optional
• Reel: Optional
• Side auger: Optional
