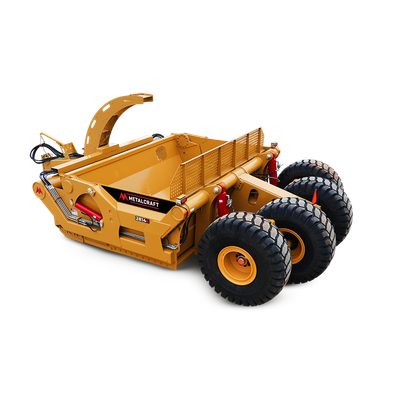

Metalcraft - Model 2814E -Ejector Scraper for Heavy-Duty Earthmoving

SHARE
The 2814E Ejector Scraper is designed for heavy-duty construction tasks and stands out due to its rugged structural design, capable of handling demanding earthmoving conditions throughout its long service life. The scraper features a rear lift control allowing the pan to be lowered level with the ground for efficient material handling. It includes an ejector system that extends beyond the front edge of the scraper to eliminate carry-back, ensuring optimal efficiency during loading and unloading cycles. This model promotes even load transportation, offering a smoother operation with minimized sway. It utilizes commonly available blades which are cost-effective and readily obtainable. The scraper's ejector guides feature a nylon block and simple track design, avoiding the complications associated with steel rollers. For added safety during maintenance, built-in shut-off valves are included on cylinders. Specifications include a capacity of 28 cubic yards (21.4 cubic meters) and optional containerization for transport.
Most popular related searches
ejector scraper

Made for heavy-duty construction, the rugged structural design of 2814E scraper can handle the most extreme earthmoving conditions over the course of the machine’s extensive lifetime. The 2814E is a rear lift controlled scraper which allows the pan to be lowered level with the ground while cutting to easily scoop up loose material. The ejector of the 2814E extends beyond the front edge of the scraper to eliminate carry-back. These loading and unloading features ensure that you maintain efficiency on every cycle.

Heaped Capacity: 28 yd3
Struck Capacity: 20 yd3
Cutting Width: 14'
Tires: 23.5 x 25
Required Power: 450 HP+
