Fachaux - Model Seranne -Electronic Sizing Machine

• Capacity from 1000 to 4000 kg/h
• From 6 to 32 programmable outputs
• Available in 1 or 2 lines
• PLC or PC control
• The most powerful and complete solution on the market

Standard configuration

• Automatic fruit feeding system
• Self-locking transfer cups
• Diameter/weight/color measuring system with PLC or computer control, screen, keyboard and mouse
• Outfeed brush for low-rolling or very fragile fruit
• Up to 32 programmable outputs

Versatility

Calibrates a wide range of fruit types: apples, pears, peaches, tomatoes, kiwis, apricots, etc.

Throughput

Working speed adjustable by electronic frequency converter.

• Weight speed: 12 cups/second
• Diameter speed: 7 cups/second

Feeding

Feeding is carried out directly by an aligner belt to optimize productivity.

Cups

• Self-locking cups for increased reliability
• Wide opening angle for flat, long, non-rolling fruit

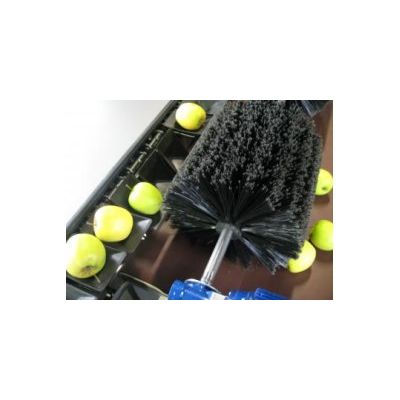

Fruit outlet

• Brushes for gentle exit, essential for non-rolling fruit
• Motorized brushes with nylon bristles to prevent scratching
• Quick-release brushes for easy maintenance

Fruit reception

Calibrated fruit reception options:

• Receiving tables
• Accumulation belts
• Turntables
• Bin filler

Easily configurable size outlets for adding or moving outlets.

Fruit measurement

Measuring options :

• Weight: Electronic scale adjustable to the gram
• Diameter: 0.1mm adjustable digital camera
• Color: Digital color camera with teach-in adjustment

PLC or computer control

• Equipped with control computer with keyboard, screen, mouse and inverter
• Calibration settings via computer
• Fast, intuitive user interface
• Printer connection possible

• Stable, high-performance software
• Stored programs for quick reactivation
• Flexible gauge programming

Receiving / Packing

• Aligned receiving tables
• Rotary diameter 1.72m
