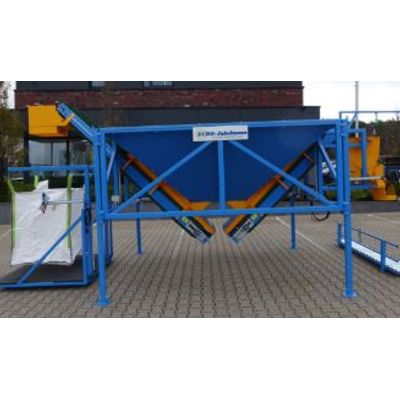

EURO-Jabelmann - Model BBF TN210 -Double Bagging Stand

Completely modernized and ergonomically adapted bagging scale for packing bulk materials such as straw pellets or similar with fully automatic operation

• Weighing range from 1 – 30 kg

Automatic big bag filler for big bag heights from 1600 mm to 2000 mm, fully automatic operation in conjunction with feeder belt, large filling hopper

• Weighing range up to 1,500 kg
• Funnel capacity approx. 5 m³
• Funnel dimensions approx. 3,000 x 2,000 mm
• Electronic weighing device (SysTec) with 2 load cells with weight preset
• Pre-weighing container
• Belt width approx. 300 mm
• 2-row staggered studs
• Stud height approx. 50 mm
• Stud width approx. 100 mm
• Stud spacing approx. 150 mm
• Drum motor 230 Volt / 0.37 kW (neutral wire required)
• Mechanical emptying of the pre-weighing container via foot pedal
• Automatic restart
• Bag counter

Weight approx. 980 kg.

In-house development, in-house production, frame powder-coated.

Loading dimensions: L 5.95 x W 2.45 x H 2.00 m.
