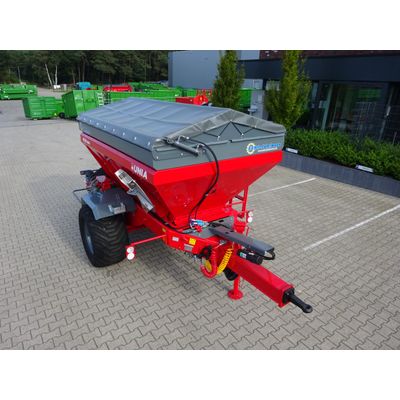

Euro-Jabelmann UNIA - Model RCW 45 -Large Area Spreader
The UNIA RCW 45 is a large-scale, single-axle spreader engineered for efficient and versatile agricultural use. It features a load capacity of 4.5 cubic meters and weighs 2430 kg. The spreader's stainless steel spreading discs accommodate diverse materials including fertilizer granules and lime, offering an adjustable working width of 10-36 meters for granules and 8-16 meters for lime. Powered mechanically, it requires 40-60 horsepower, making it suitable for various farming operations. The RCW 45 is equipped with standard features such as band conveyor drive, mechanical disc drive, border spread disc, loading container sieves, mechanical telescopic support, two-line air brake system, handbrake, lighting, and a wide-angle joint shaft with 620 Nm torque. An optional hydraulic folding cover ensures ease of use. Additional equipment is available at extra cost. The spreader's design prioritizes agricultural efficiency with its reliable mechanics and optional hydraulic components.
Technical data:
- Own weight 2430 kg
- Loading volume 4.5 m³
- Height of the spreading discs above the ground: 80 cm
- Working width for fertilizer granules 10-36 m
- Working width for lime 8-16 m
- Power requirement approx. 40-60 HP
- Tires 500/60-22.5
Standard equipment:
- Belt conveyor drive via the drive spur wheel (optional hydraulic)
- mechanical drive of the spreading discs
- Spreading plate for fertilizer and lime made of stainless steel
- Boundary spreading disc
- Loading container sieves
- Top attachment
- mechanical telescopic support leg
- 2-wire air brake system
- Handbrake
- Lighting
- Wide-angle drive shaft (620 Nm)
- Hydraulic folding tarpaulin
