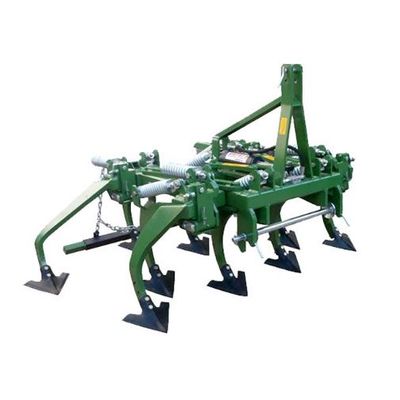

Extensible Cultivator Escala

Expansion system by means of 1 or 2 hydraulic cylinders, with actuation on the parallelogram’s feedback rods, allowing the opening of each side in a uniform manner. Options of 7, 9, 11 and 13 arms. The extension on the 13-arm cultivator is 2 cylinders. Equipped with Bellota grilles. Interchangeable vineyard arms. with a safety device to prevent its deployment during traffic. Safety chains to prevent. the rolling of the leveller during the displacement. Treated joint pins for increased durability. and preventing premature wear. It is recommended to grease the points of greatest friction for optimum maintenance of the cultivator. Locking valve that allows it to be fixed to the width of the cultivator. Computer-controlled manufacturing technology. 4 folding vineyard inclined arms. 2 for each side, which, in addition to reducing the upper width of the cultivator for working in dense vegetation, also allows the width of the cultivator to be adjusted in narrower passages.
