Standard equipment: 3 polyethylene tanks (main, circuit washer and hand wash basin). Capacities (from 200 to 2,000 lts.). Chassis reinforced with anti-corrosion treatment and painted. Annovi Reverberi AR-30 pump (2 diaphragms,35 l/m,40 atm). Manual regulating knob 2 outlets and pressure gauge Ø63. Anti-pollution charger. Reinforced transmission. Hydraulic agitator. Tank interior cleaning robot (from 500 lts.). Lateral ladders from 1,000 lts.

Standard equipment: 3 polyethylene tanks (main, circuit washer and hand wash basin). Capacities (from 200 to 2,000 lts.). Chassis reinforced with anti-corrosion treatment and painted. Annovi Reverberi AR-70 BP pump (2 diaphragms,70 l/m,20 atm). 3-way ECM under pressure control, isometric Ø63 pressure gauge. Anti-pollution charger. Reinforced transmission. Hydraulic agitator. Tank interior cleaning robot (from 500 lts.). Lateral ladders from 1,000 lts.

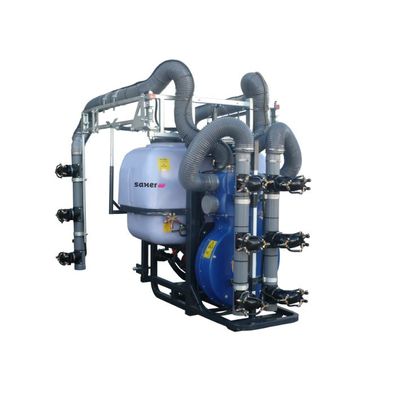

3 polyethylene tanks (main, circuit washer and hand wash basin). Capacities (from 300 to 1,200 lts.). Chassis reinforced with anti-corrosion treatment and painted. Annovi Reverberi AR-813 pump (3 diaphragms,81 l/m,50 atm). Manual regulating knob 2 outlets and pressure gauge Ø63. Anti-pollution charger. Hydraulic stirrer. Reinforced transmission. Tank interior cleaning robot (from 500 lts.). Lateral stairs from 1,000 lts. and above. Polyester turbine casing. Manual, extendable and adjustable arms. 6 or 8 mittens with double sprayers. Movements: Manual open/close.

3 polyethylene tanks (main, circuit washer and hand wash basin). Capacities (600 to 1,200 lts). Chassis reinforced with anti-corrosion treatment and painted. Annovi Reverberi AR-1053 Pump (3 membranes,105 l/m,50 atm). Single lever. Anti-pollution charger. Hydraulic stirrer. Reinforced transmission. Tank interior cleaning robot. Lateral stairs from 1,000 lts. and above.. Polyester turbine casing. 3 or 5 movement arms with double-acting electrodistributor for 4-side treatment. 12 double mittens. 3 movements: Open/Close single; Up/Down. 5 movements: Open/Close single; Raise/Lower; Save row ind..

Expansion system by means of 1 or 2 hydraulic cylinders, with actuation on the parallelogram’s feedback rods, allowing the opening of each side in a uniform manner. Options of 7, 9, 11 and 13 arms. The extension on the 13-arm cultivator is 2 cylinders. Equipped with Bellota grilles. Interchangeable vineyard arms. with a safety device to prevent its deployment during traffic. Safety chains to prevent. the rolling of the leveller during the displacement. Treated joint pins for increased durability. and preventing premature wear. It is recommended to grease the points of greatest friction for optimum maintenance of the cultivator. Locking valve that allows it to be fixed to the width of the cultivator. Computer-controlled manufacturing technology. 4 folding vineyard inclined arms. 2 for each side, which, in addition to reducing the upper width of the cultivator for working in dense vegetation, also allows the width of the cultivator to be adjusted in narrower passages.

The multifunction chassis is a digger carrier that allows to attach on the rear any type of machine such as cultivators, shredders, tillage blades, brush cutters, etc., whatever the manufacturer. It has rear quick couplings and adjustable depth control wheels. This multifunctional system allows several jobs to be carried out at the same time: Digging and tilling. Digging and clearing. Digging and crushing. Digging and milling.

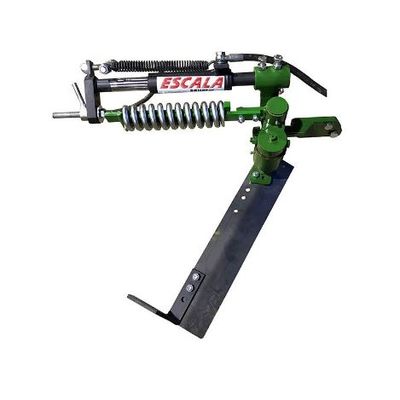

The spring-loaded mechanical diggers or interceptors consist of an optional hydraulic cylinder and a working blade with paddle. It is a machine of easy functionality that offers a perfect digging. It is used to dig goblet vines with little or abundant vegetation and trained vines, from the second or third year, both in goblet and trained vines. It can be attached to both extendable and fixed cultivators or any other type of cultivator or agricultural implement.
