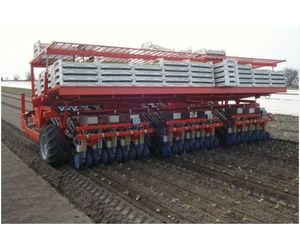

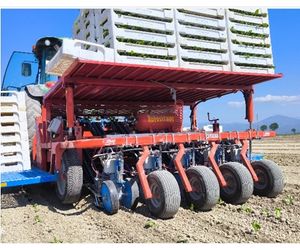

Ferrari Rotostrapp - Semi-Automatic Transplanter Machine for Seedlings
Absence of dead times and excellent positioning of the pLants are the main features of the Rotostrapp transplanter, available in hauled and self-propelled version. It only transplants the pressed-cube blocks with the side between 3 and 5 cm, with a minimum inter-row distance of 28 cm in line or "diamond", while the distance on the row is electronically adjustable from 10 to 100 cm. Working capacity varies up to a maximum of 8,000 plants / hour for each element, at a maximum speed of 2.5 km/h. The elements are all independent of each other thanks to the parallel Linkage and the planting is operated by a rotating system of separation and direct collocation, followed by an adequate covering. The self-propelled version also, with 2 or 4 driving wheels, is available with hydrostatic transmissions, power steering and hydraulic lifting; the automatic steering device allows not to use the driver. Transplant lettuces and vegetables to a height of less than 10 cm!
- Semi-automatic transplanting machine for plants in square blocks (side from 3,8 [1.2"-3.1"]upto4,5 cm[1.6"-2"])
- Vegetables: lettuce, brassica, celery, all other vegetables in plants similar to the previous ones with minimum height 6 cm (2.4") and maximum height 10 cm (4")
- Operators: 1 for 2 rows
- Versions: 3 point hitch - with draw bar - self propelled
- Frame: single bed-multi-bed

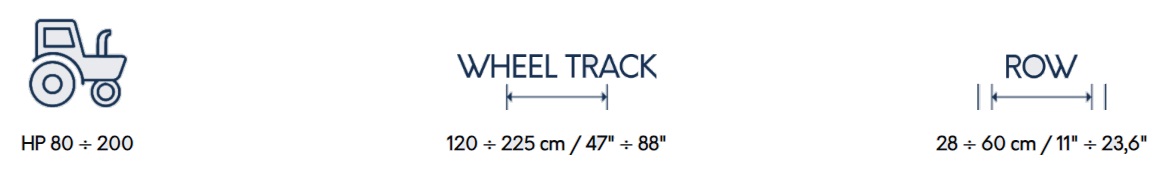

- Minimum row spacing: 28 cm (11")
- Performance hour/operator: on average 7,000 plants per hour -max 9,500 plants per hour
- Main fittings: rubber roller, electronic gearbox, row switch-off device, cleaner matic
Maximum Productivity Yield Per Operator
Semi-automatic transplanter for seedlings in cube (side from 3.8 to 4.5 cm). It is particularly suitable for transplanting salads and other vegetables that have a maximum height of 8-10 cm. It is made of modular and modular units both in the towed and self-propelled version.
For Two Rows of Transplant
- Perfect for vegetables such as: salads, brassicas, celery and all similar planted vegetables with a height of min 6cm - max 10cm.
- Available versions: 3 point hitch, with draw bar, self propelled
- Frame: single-bed, multi-bed
- Rubber roller with adjustable pressure
- Memoplant (historical archive of transplant data exportable on SD card)
- PSC (Plant Spacing Control - Hydraulic gearbox as an alternative to the mechanical one with display to set plants per hectare / distance on the row)
- Electric depth adjustment
The machine works with solid blocks (the peat in the pot needs to be well pressed) and the side of the block can go from 3.6 up to 4.6 cm. The minimum distance between the rows starts from 28 cm. This transplanter can operate both in straight line and in “diamond” in order to guarantee a constant and uniform growth of the plants. The working capacity per hour can go up to 8,000 plants per hour with a speed of up to 2.5km / h.
