Wil-Rich
Wil Rich - Model QX² -Field Cultivator
FromWil-Rich

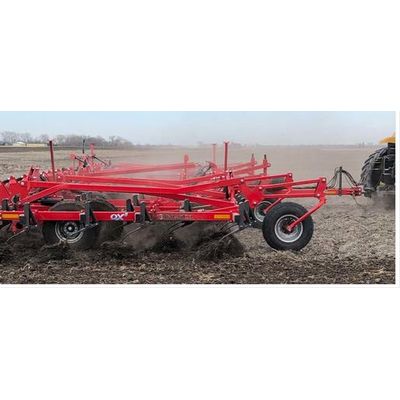

Wil-Rich cultivators are the industry leaders for strength and performance. Designed for the demands of today’s agriculture, Wil-Rich focuses on its customers – designing tillage tools to meet farmers’ requirements. The Wil-Rich QX² field cultivator is equipped with a floating hitch to provide accurate depth control in uneven terrain. The QX² also utilizes optional 31 x 13.5 x 15 flotation tires to enhance flotation in all field conditions.
Most popular related searches
field cultivator
cultivator
tillage machine
secondary tillage
tillage
cultivator equipment
tillage cultivator
cultivation equipment
tractor
Main Frame
- 13′ (3.96 m) main frame
- 6-bar bolted frame
- 3 x 4″ (8 x 10 cm) tubular frame
- 35″ (89 cm) between five ranks
- 140″ (356 cm) front to back
- Floating hitch in field
- Rigid lock hitch in transport
Gauge Wheels
- Hydraulically-controlled
- Front-mounted
- Castering
Axle for Main Frame
- Walking tandem axles on main frame and wing frames
- Non-grease axle composite pivots
Tractor Requirements
- 5-9 hp/foot
Hydraulics
- Single-point depth control
- Complete with hoses and fittings
Hitch
- 13′ (4 m) frame – Cat. IV Tongue for 2″ (5 cm) diameter pin
Edge Formed C-shank
- Single spring edge-on shank, 160 lb. point pressure
- Twin spring edge-on shank, 320 lb. point pressure
- 7-inch shank spacing
Axle for Wings
- Walking tandem with 12 31 x 13.5 tires on 10″ (25.4 cm) rims
- 6-bolt hubs with 2″ (5 cm) spindle
- Nongrease axle composite pivots
Miscellaneous Equipment
- Safety chain
- Transport warning light package
- Screw type hitch jack
- Depth indicator gauge
