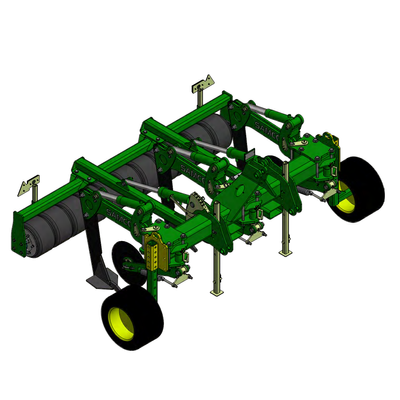

Samco - Field-Lift Sub Soiler

Compaction can be the cause of a poor response to fertilisers. Roots cannot exploit the soil; plants are starved of the nutrients they need. Plants weakened by waterlogging, as a result of compaction are less resistant to disease and pest attack and could result in extra sprays needed. Drought can also be an issue; shallow rooting plants cannot obtain sufficient moisture and are quick to wilt.

The optimum time to use the Samco Field Lift is after crops are harvested and right before sowing. The Samco field lift breaks sealed and compacted soil up to 18 inches into the ground.

• Depth Gauge – ensures driver can easily maintain a constant working depth across the field.
• Accumulators are fitted to protect the legs when they come into contact with large stones.
• The legs are mounted on pins to allow pivoting left and right when they make contact with stones.
• The pulling pin is 70mm thick with brass bushings to reduce wear on the tip
• Hydraulic release can be set from the cab depending on conditions and horse power of the tractor.
• Easy replace, one piece wearing tips. Two sizes available: 8 and 12 inches wide for grassland and arable respectable.
• Grassland discs pivot from 50 mm high tensile shafts housed in a double glider G top hat sleeved bush. Discs run on 2 double row ball bearings.
• Easy release pull-out pins to allow for quick transfer from grassland and back to arable.
• Depth control wheels can be used on tillage ground where packer roller is not used.
