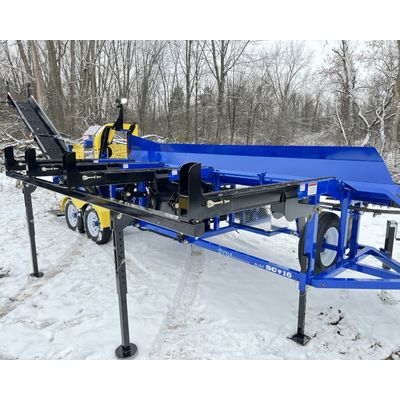

Dyna - Model SC-16 - Firewood Processor

SHARE

With several upgrades to the 2024 SC16 Rapid Split, the most notable is the splitter autocycle and adjustable stroke length on the cylinder to help save more time processing firewood. With a two-speed splitter the full stroke cycle time is sub four seconds. Also, improved hose routing reduces debris build up. The auto cycle hall effect sensors eliminate extend and retract pressure spikes, reducing wear on the cylinder, valve, and hoses.

Most popular related searches
firewood processor
firewood
harvester bar
processing firewood
firewood processing
firewood splitter
harvesting system
log harvesting
hydraulic logging
harvesting operation
  • One Button Splitter Autocycle
  • Under 4 Second Splitter Cycle
  • 6 Cords/hour Output Rating
  • 16″ Rated Log Diameter (22″ Max)
  • 24′ Log Length capacity
  • 2 Speed Splitter Cylinder
  • 56 HP Kohler Diesel Standard
  • Hi-Lo Valve
  • Electric Brakes
  • Short Stroke Auto-Cycle

The SC-16 Firewood Processor is equipped with our new standard 56HP Kohler KDI diesel engine, coupled with a commanding 5-inch x 30-inch hydraulic cylinder. This dynamic duo orchestrates a staggering output of up to 6 cords per hour, a testimony to its industrial-grade prowess.

Embracing versatility, the SC-16 boasts a rated capacity for logs with a 22-inch diameter and up to 24 feet in length, accommodating even the most substantial wood sources. Meanwhile, the machine’s supreme adaptability is showcased by its capability to manage logs with a maximum diameter of 22 inches – a feat that showcases its robust engineering.

While retaining its hallmark portability, the SC-16 Firewood Processor is an industrial-grade marvel, necessitating a tow vehicle equipped with an electric trailer brake control for optimal performance and safety.

Effortlessly transitioning from processing to transportation, the SC-16 stands as an epitome of operational ease. Controlled by just three ergonomic joystick commands, the live deck, in-feed trough, rolling log clamp, harvester saw, and splitting wedge harmoniously respond to your guidance from a central operator station. This streamlined orchestration ensures optimal precision and efficiency, while the machine’s mobility remains unmarred. Swiftly transportable between your wood yard, worksite, or rental locations, the SC-16 Firewood Processor epitomizes the convergence of power, simplicity, and versatility in the world of firewood processing.

Standard features and Bold Improvements Included:

  • Ergonomic Two Joysticks Hydraulic Controls and a Splitter Lever
  • IP67 rated electronic and engine compartment (2019 and up models)
  • Automatic crooked log in-feed correction (2019 and up models)
  • Heavy gauge steel hinged engine cover (2019 and up models)
  • 3-section pump for running multiple functions at one time
  • Color LCD easy to read control panel(2019 and up models)
  • 5 Pin Light and 4 Wheel Brake Tow Package
  • Automatic bar and chain oiler (2019 and up models)
  • Diamond Plate 30-gallon fuel tank / toolbox
  • Heavier gauge safety guards (2019 and up models)
  • Adjustable 4-way firewood splitting wedge
  • Adjustable height 16 Foot Belt Conveyor
  • 2-5/16-inch Ball Hitch (2019 and up models)
  • Rolling log clamp (2019 and up models)
  • Sawdust Chute (2019 and up models)
  • Adjustable Hydraulic Wedge
  • Electric Conveyor Winch
  • Hydraulic Booster Valve
  • Hydraulic Deck Lifter
  • Tandem Torsion Axles
  • 25-inch harvester bar
  • Operators work platform

Optional upgrades:

  • Operator seat and footrest
  • 6-way firewood splitting wedge
  • 8-way firewood splitting wedge (8-way wedge limited to 12-inch diameter logs)
  • Auxiliary Hydraulics Quick Connects
  • Extended warranty available
  • LED Work Lights
  • Canopy for Operator station
  • Bagger attachment to collect debris
  • Log Diameter: 16 inch (22 inch Max)
  • Log Length: 24 foot
  • Power Options: 56 HP Kohler KDI Diesel, 49 HP Tier 4 CAT Diesel
  • Transport Dimensions: W: 89 inch L: 312 inch H: 130 Inch Weight: 9760 lbs
  • Splitting Cycle Time: 4 seconds
  • Log Loading: Hydraulic Deck Lifter Standard
  • Maximum Finished Cut Piece:  26 inch
  • Splitting Options: 4-way Standard, 6-way Optional, 8-way Optional (12 inch Max Diameter)
  • Saw Bar and Chain: 25 inch Harvester Bar (752HSFN104) 404 Harvester Saw Chain (18HX089E)
  • Hydraulic Pump Flow: 102 gallons per minute
