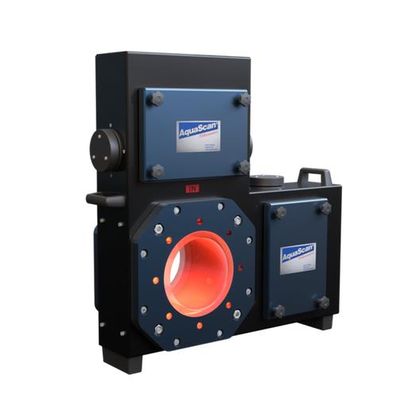

AquaScan - Model CSF 2000 -Fish Counter

Recommended fish sizes are 25g to 2kg.

• Fish size: 25 g – 2000 g
• Capacity: 44 000 fish/unit/hour (100g)
• Water flow: Continuous flow pump, no air bubbles

• Material: Powder painted aluminum and POM
• Weight: 40kg
• Dimensions: 868 x 876 x 256mm
• *Capacity: 44 000 fish/unit/hour(100g)
• Power Consumption: 29W
• Power supply: Powered by the Control Unit
• Flange connection: DN 200 PN10, 16 x M20x50 bolts (included)
• Fish size: 25g to 2000g
• Accuracy: 98-100%
• Arrangement: Require continuous flow pumps, no air bubbles
• Fish speed: 2,5 - 3m/s
• Cable included: 10 meters AquaScan extension cable
• Requirements: AquaScan Control Unit and AquaScan Win
• Video: Composite video (optional)
