AquaScan - Model CSF 1000 -Fish Counter
FromAquaScan AS
As well as the latest addition to the CSF-series, CSF 1000 is also the smallest. The 4″ pipe has moderate pump requirements, and the DN100 flange connection makes the installation easy. This compact and lightweight unit can be placed almost anywhere, and dismounted and moved with hardly no effort. Despite its size, CSF 1000 will move and count fry at an impressive rate.
Most popular related searches
Recommended fish sizes are 5g to 350g.
- Fish size: 5 g – 350 g
- Capacity: 35 000 fish/unit/hour (25g)
- Water flow: Continuous flow pump, no air bubbles
- Material: Powder painted aluminum and POM
- Weight: 20kg
- Dimensions: 541,5 x 526,5 x 189,6mm
- *Capacity: 35 000 fish/unit/hour(25g)
- Power Consumption: 29W
- Power supply: Powered by the Control Unit
- Flange connection: DN 100 PN10, 16 x M16x40 bolts (included)
- Fish size: 5g to 350g
- Accuracy: 98-100%
- Arrangement: Require continuous flow pumps, no air bubbles
- Fish speed: 2 - 3m/s
- Cable included: 10 meters AquaScan extension cable

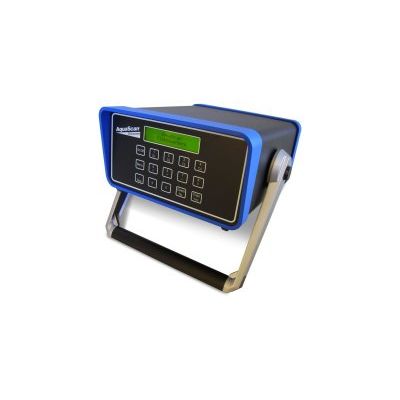

- Requirements: AquaScan Control Unit and AquaScan Win
