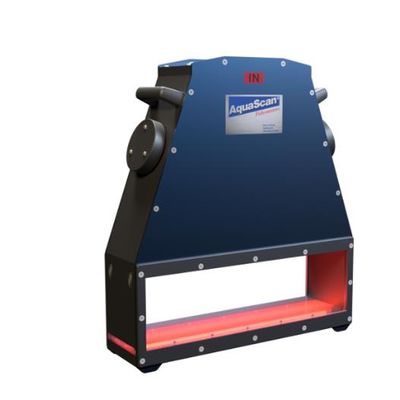

AquaScan - Model CSW 5500 -Fish Counter
FromAquaScan AS
The CSW 5500 has a 550mm wide measuring area. This allows the smolts to spread out, resulting in very high capacity. It will count more than 100 000 smolts per channel per hour.
Most popular related searches
By arranging up to 4 CSW5500 channels, the system will handle very large amounts of fish within a short timeframe.
This model can be delivered with a built-in surveillance camera, which allows for great control of the fish flow, hence optimising the counting operation.
- Fish size: 5 g – 600 g
- Capacity: 179 000 fish/unit/hour (100g)
- Water flow: Dry/film of water
- Material: Powder painted aluminum and POM
- Weight: 25kg
- Dimensions: 653 x 583 x 161mm
- *Capacity: 178 000 fish/unit/hour (100g)
- Power Consumption: 29W
- Power supply: Powered by the Control Unit
- Rack connection: Rack 5500
- Fish size: 5g to 600g
- Accuracy: 98-100%
- Arrangement: Approx. 30 ° tilt forward. Dry/Film of water
- Fish speed: 2,5 - 3m/s
- Cable included: 10 meters AquaScan extension cable
- Requirements: AquaScan Control Unit
