West - Flat/Bale Trailer

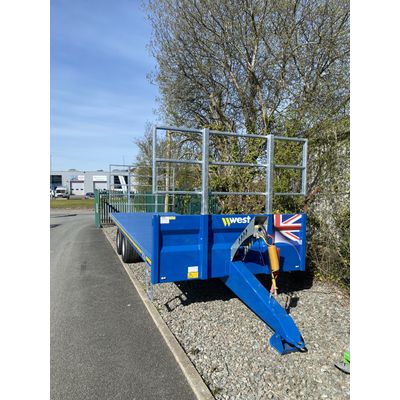

Built with the quality in design and construction expected of the West machinery, these flat / bale trailers have been added to the current range available from Harry West (Prees) Ltd. There are two models currently available in this design, the FB 26 which is 26′ body length and the FB32 which is 32′ body length. Each trailer as a load capacity of 14 tonne. The trailers are built using 250 x 150 box section chassis giving a very srong and durable construction. This is then covered using checker plate, folded at the joints and then welded along the seams. 8mm reinforcement plates are also used on the suspension points. The headboard is 600mm deep and we have a 1500mm fixed drawbar. (sprung drawbar is available as an option). The units are fitted with parabolic springs and 420 x 180 brakes giving us a true commercial axle assembly.
