BIN - Model Type FBIN7 -Flat Bottom Silo
Flat bottom silos type FBIN7 with sidewalls made of corrugated sheets of steel. Diameter of 8,59 metres. Loading capacity from 166 tonnes to 352 tonnes.
The loading capacity of the silo is calculated for a silo with a steel floor mounted on concrete blocks. FBIN7 silos made of corrugated sheets of steel can be sealed with aprons called FFARTUCH or concrete screed. If a 15 cm thick screed is used, it will reduce the volume of the silo by approximately 6 m3 and the loading capacity of the silo by approximately 4 tons. The actual capacity of the silo may vary due to factors such as the method of loading, the type of equipment used inside the silo, and grain bulk properties.

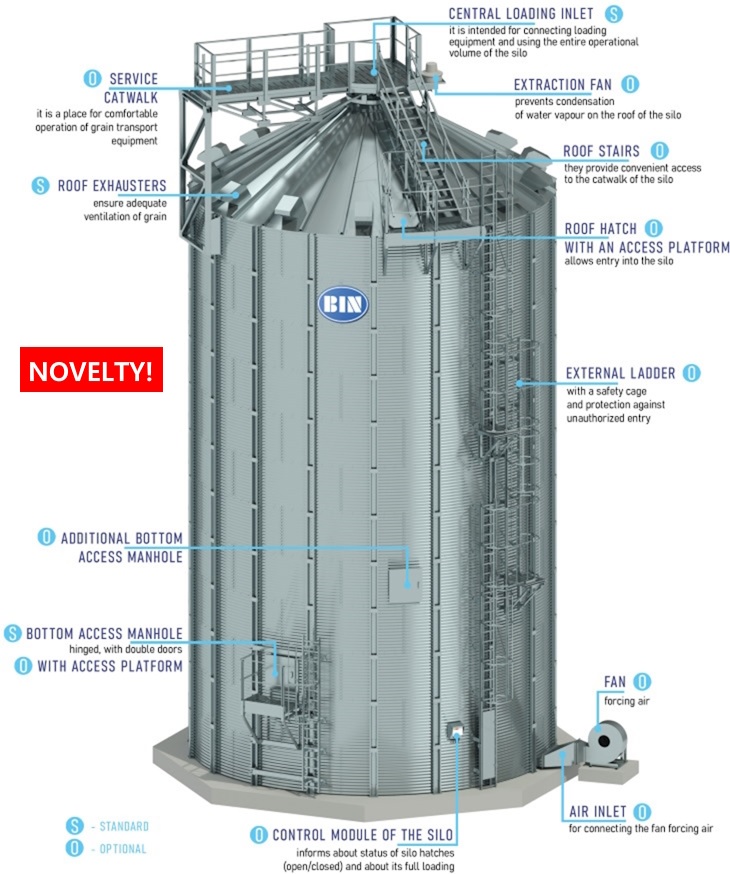

- shell made of corrugated sheets of steel
- anchors for fixing to the foundation
- roof designed for a snow zone of 200kg/m2
- 10 exhausters on the roof
- central loading inlet with a diameter of 200mm located on the top of the roof
- hinged bottom access manhole with double doors
- internal ladder to the bottom access manhole
- service hole located on the roof with a safety grille
Optional equipment:
1. means of access:
- external ladder with safety cage and protection against unauthorized entry
- internal ladder with protection
- additional bottom access manhole
- roof stairs
- roof hatch with an access platform
- catwalk to cover whole diameter of the silo or half diameter of the silo
- platform on the top rim of the silo to use when the catwalk is not needed
- access platform with ladder or lower platform enable access to the bottom access manhole
2. ventilation:
- fully perforated floor made of steel based on a concrete blocks
- air inlets for connecting the fan forcing air
- fan forcing air
- extraction fan on the silo roof
- temperature measurement probe
3. loading and unloading:
- control module of the silo
- emergency outlet of grain (portable duct designed for grain unloading located on the silo floor)
- internal sweep auger conveyor
- underfloor conveyor for silo unloading
