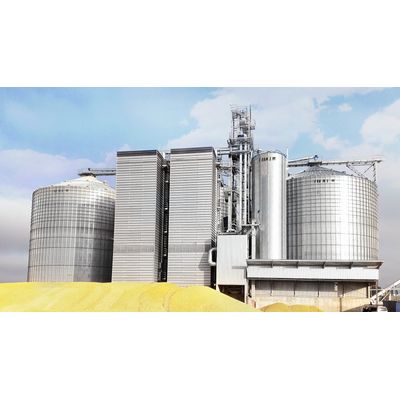

AGI FRAME - Model FP - Flat Bottom Silos

AGI FRAME can meet all customers’ needs for commercial silo applications, with the wide range of FP silo models, from 3.64 up to 32.74 metres diameter. All silo major components are manufactured with highly automated continuous ‘de-coiling’ process techniques, ensuring fast & accurate production. The cylinder is constructed from galvanized corrugated steel sheets with profiled external galvanized vertical stiffeners. The standard sidewall sheets are manufactured from 0.8 mm through to 4.5 mm galvanized and the stiffeners of the bin from 0.8 mm through to 6.00 mm galvanized, (Standard 600 g/m2 steel with a tensile strength up to 470 N/mm2 & a yield stress up to 420 N/mm2.
