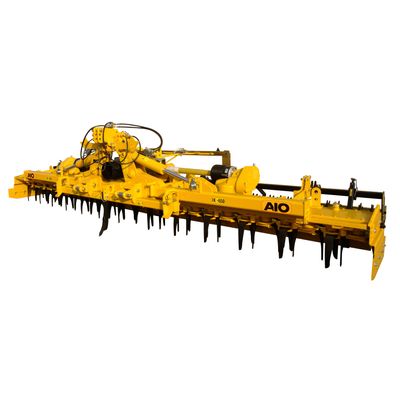

AIO - Model IK/PR -Foldable Power Harrows
FromAio S.r.l.
The IK/PR model is a foldable power harrow thought to satisfy needs of the subcontractors and of large-scale farms. The particular design of the frame allows to contain the encumbrance in transport conditions at only 2,50 m indipendently from the work width which can be of of 5,00 m – 6,00 m – 6,50 m – 7,00 m – 8,00 m. Mod. IK/PR 500 – IK/PR 600 – IK/PR 650 – IK/PR 700 – IK/PR 800.
Most popular related searches
- 3rd and 4th category linkage to the tractor.
- Gearshift rpm 1000 Z: 14/23 = revolutions rotors min 328 (standard).
- Back fining bar with crank register assembled on the roller.
- Back part of the frame with double hinge .
- Frame with device for fixed or floating position.
- Track eradicator holder frame.
- Front stone guards wedges.
- Floating roller.
- Walterscheid cardan shaft with automatic clutch on the sides.
- Cardan shaft in direct contact on the central referring – Trac. Conn. 1″ 3/8 Z=6.
- Rotors with knives screwed with setscrew.
- Central track eradicator anchor.
- Bar with lights.
- 400 HP central gearbox standard on IK/PR 600, IK/PR 650, IK/PR 700, IK/PR 800 and on request on IK/PR 500.
130/350 HP – 95/260 KW
