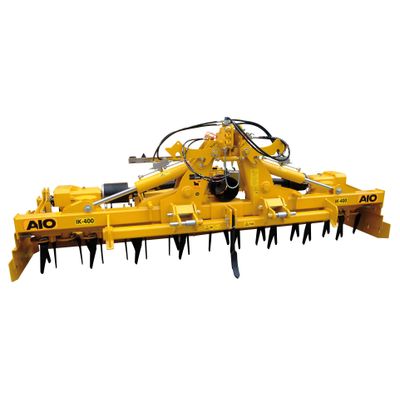

AIO - Model IK -Foldable Power Harrows
FromAio S.r.l.
This foldable power harrow has been thought to satisfy the needs of the subcontractors and of large-scale agricultural farms. The particular design of the frame allows to contain the encumbrance in transport conditions at only 2,50 m indipendently from the work width which can be 4 m – 4,50 m – 5 m. Mod. IK 400 – IK 450 – IK 500.
Most popular related searches
folding power harrow
power harrow
large-scale agriculture
folding harrow
harrow
rotary harrow
tractor
farm scale
- 3rd and 4th category linkage to the tractor.
- Gearshaft rpm 1000 Z: 14/23 = revolutions rotors min 328 (standard)
- Back fining bar with crank register assembled on the roller.
- Frame wit device for fixed position.
- Track eradicator roller holder frame.
- Front stone guards wedges.
- Floating roller.
- Cardan shaft with automatic clutch.
- Cardan shaft in direct contact on the central referring . Trac. conn. 1″ 3/8 Z=6.
- Rotors with knives screwed with setscrew.
- Central track eradicator anchor.
- Bar with lights.
110/300 HP – 81/222 KW
