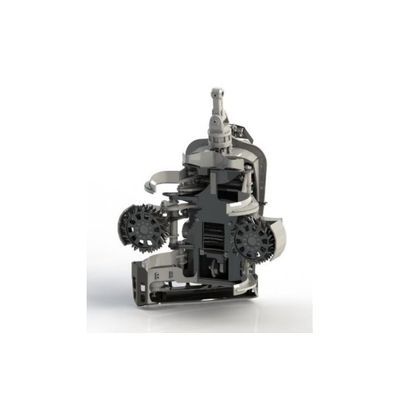

LogsetModel TH65 and TH65X - Forestry Harvester Head

SHARE

The Logset TH65 is a versatile head built for thinning and final felling on all types of sites.  It is compact for early thinning operations, yet powerful enough to fell trees up to 65 cm. ­Optimal productivity is achieved with diameters up to 45 cm. The head is well matched with the Logset 8H GT harvester.  The Logset TH65 has all the power, yet is not heavy, which makes it perfect for longer cranes with a wider reach. Many options are available for ­different customer needs, such as ­alternative ­feeding wheels, color marking and stump ­treatment.

Most popular related searches
  • DIMENSIONS
  • Width, head open, mm : 1560(61 in)
  • Width, head closed, mm : 1200 (47 in)
  • Height to top knife, mm : 1380 (54 in)
  • Height with rotator and link, mm 1900 (75 in)
  • Weight with rotator and link, kg 1150 (2 530 lbs)
  • FELLING/CUTTING :
  • Max. felling/cutting diameter. : mm : 720 (28 in)
  • Saw bar, mm :  820 (32 in)
  • Saw unit :  SuperCut 100
  • Saw motor :  Parker F11-19, Bucher 20/25
  • Saw chain tensioning Hydraulic
