Rottne - Model F10D -Forwarder

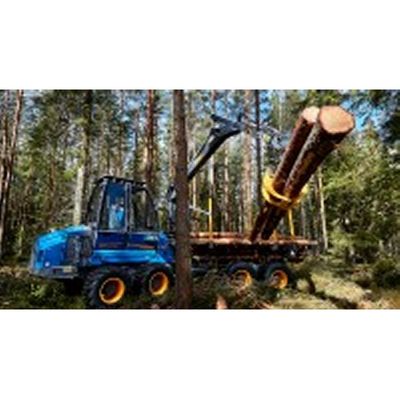

ROTTNE F10D is the sequel to the popular Rottne F10B and has all the features demanded of a genuine thinning forwarder. Stability, flexibility and good tracking together with low ground pressure and good bearing capacity are typical characteristics for this machine.
Rottne F10D is now also available in a new version that is only 2400 mm wide. Making manoeuvrability when thinning even easier.
The cab’s large windows and low bottom edges provide fantastic visibility over the entire work area and the Rottne D5 control system gives the possibility of personal settings for perfect work results. A cab with a good combination of comfort and function creating an optimal work environment.
With the forwarder computer and GPS/GeoInfo you get detailed information about daily production with coordinates for the position of roadside timber stacks and accurate follow-up of times for loading, unloading, transport, servicing and repairs, etc.
- Small and versatile – width from only 2 400 mm
- 45° steering angle
- Powerful transmission in its class
- Spacious cab with Comfort Line
- Low ground pressure
- Compatible for bearing tracks on all wheel pairs
Engine
- Type JD 4045 HF 485, Power Tech Plus, Tier 3
- Output 116 kW (155 hp) at 1800 rpm
- Torque 645 Nm (476 lb ft) at 1400 rpm
- Cylinder volume 4.5 litres (274 in3)
- Diesel tank 125 litres (33 US gal)
Transmission
- Type D5 controlled, hydrostatic/mechanical with full capacity control. 3 gear steps.
- Tractive force 139 kN (31 250 lbf)
- Speed, gear 1 0 - 6 km/h (0 - 3.7 mph)
- Speed, gear 2 0 - 10.4 km/h (0 - 6.5 mph)
- Speed, gear 3 0 - 25 km/h (0 - 15.5 mph)
BRAKES
- Type Dual-circuit el/hydraulic controlled negative wet disc brakes. Automatic load brake. Spring-assisted parking and emergency brake.
Wheel equipment
- 8 WD 600/50 x 22.5* / 710/40 x 22.5**
Chassis
- Type Articulated joint with slew bearing and frame lock. Bolted load bunks of tube type.
- Steering angle +/- 43°
- Max. steering touque 48 kNm (35 400 lb ft)
- Horizontalangle +/- 25°
Hydraulic System
- Type Load sensing system, entirely separated from the transmission.
- Pump capacity 165 litres (43.5 US gal) / 1500 rpm
- Working pressure 3 - 24 MPa (440 - 3 480 psi)
- Degree of filtration 10 micron
- Tank volume 90 litres (24 US gal)
Electrical System
- Type 24 volt electrical system with CAN-bus technology.
- Battery 2 x 120 Ah
- Alternator 110 A
- Machine control system ROTTNE D5, with a 9
- Working lights 21 pcs
Cab
- Type Spacious, vibration-proof saftey cab. ISO certified
- Noise level 69 dBA
- Climate system ACC
Crane
- Type Knuckle boom loader RK85 with dual slew cylinders and telescope 2.1 m / double telescope.
- Lifting torque 86.7 kNm (63 950 lb ft)
- Angle of rotation 380°
- Reach 7.5 / 9.3 m (24.6 / 30.5 ft)
- Torque 27.1 kNm (19 920 lb ft)
Weight and dimensions
- Service weight from 12 850 kg (28 300 lbs)
- Width 2 530 mm* (99 in) / 2 729 mm** (107 in)
- Length 8 711 mm (343 in)
- Transportation height 3 687 mm (145 in)
- Ground clearance (at articulated frame lock) 600 mm (24 in)
- Loading capacity 9 000 kg (19 850 lbs)
- Loading area 4 m2 (43 ft2)
Equipment
- Chains Yes
- Lighting Xenon or LED Yes
- Sprinklers Yes
- Engine/cab heater Yes
- Blinds Yes
- Mobile telephone Yes
- Vacuum pump Yes
- Reversing camera Yes
- GPS/Geoinfo Yes
- Filler pump Yes
- Green oil Yes
- Colour printer Yes
- Mobile broadband Yes
- Full toolkit Yes
- Central lubrication Yes
- Tracks Yes
- Forwarder computer Yes
- Extended wagon frame Yes
- Extra load bunk Yes
- Cab damping system COMFORT LINE Yes
- Double telescope Yes
- Balanced bogie system Yes
- Bogie lift Yes
