- Rottne - Model F13D - Forwarder
Rottne - Model F13D -Forwarder

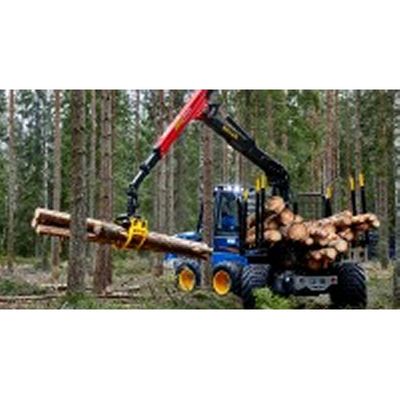

The forwarder is equipped with 8 wheels and a load capacity of a full 14 tonnes. Hydraulically operated headboard and front bunk makes Rottne F13D very versatile when handling different timber lengths. The forwarder can alternatively be equipped with width adjustable load bunks (Wide Load) and hydraulic stakes, which increases its flexibility and load capacity from 4,7 m2 to 5,5 m2.
Most popular related searches
Powerful chassis and steering wagon give a flexible machine
Rottne F13D has a powerful chassis that can manage final felling, at the same time as the steering wagon with an extremely large steering angle of 54°, extremely small turning circle and accurate tracking makes it ideal for dense thinning.
ROTTNE F13D An all-round forwarder for both thinning and final felling with unique articulated wagon, that gives precise tracking.
- Forwarder for thinning and final felling
- Steerable wagon with 54° steering angle & accurate tracking
- Powerful chassis
- Large wheels
- Wide Load
- Spacious cab with Comfort Line
- Compatible for bearing or drawing tracks on all wheel pairs
Engine
- Type JD 6068 HFC 08 Power Tech PVS, Final Tier 4(FT4)
- Output 164 kW / 220 hp at 1800 rpm
- Torque 963 Nm (710 lb ft) at 1500 rpm
- Cylinder volume 6.8 litres (415 in3)
- Diesel tank 165 litres (44 US gal)
Transmission
- Type D5 controlled, hydrostatic/mechanical with full capacity control. 3 gear steps.
- Tractive force 177 kN (39 800 lbf)
- Speed, gear 1 0 - 5 km/h (0 - 3.1 mph)
- Speed, gear 2 0 - 9.5 km/h (0 - 5.9 mph)
- Speed, gear 3 0 - 25 km/h (0 - 15.5 mph)
BRAKES
- Type Dual-circuit el/hydraulic controlled negative wet disc brakes. Automatic load brake. Spring-assisted parking and emergency brake.
Wheel equipment
- 8 WD 710/45 x 26.5
Chassis
- Type Articulated joint with slew bearing and frame lock. Bolted welded load bunks. Wagon steering.
- Steering angle +/- 43° / 54° (with wagon steering)
- Max. steering touque 74.9 kNm (55 240 lb ft)
- Horizontalangle +/- 20°
Hydraulic System
- Type Load-sensing system, entirely separated from the transmission.
- Pump capacity 210 litre (55 US gal) / 1500 rpm
- Working pressure 3-22 MPa (435 -3 200 psi)
- Degree of filtration 10 micron
- Tank volume 105 liter (28 US gal)
Electrical System
- Type 24 volt electrical system with CAN-bus technology.
- Battery 2 x 120 Ah
- Alternator 150 A
- Machine control system ROTTNE D5, with a 7 inch colour touch screen
- Working lights 20 pcs
Cab
- Type Spacious, vibration-proof safety cab. ISO certified
- Noise level 69 dBa
- Climate system ACC
Crane
- Type Knuckle boom loader, RK125, with dual slew cylinders and telescope 1.4 m / 2.4 m / double telescope.
- Lifting torque 125 kNm (92 200 lb ft)
- Angle of rotation 375°
- Reach 7.2 / 8.4 / 10 m (23.5 / 27.5 / 33 ft)
- Torque 35.8 kNm (26 400 lb ft)
Weight and dimensions
- Service weight from 19 700 kg (43 400 lbs)
- Width 2 924 mm (115 in)
- Length 9 833 mm (387 in)
- Transportation height 3 864 mm (152 in)
- Ground clearance (at articulated frame lock) 668 mm (26 in)
- Loading capacity 13 000 kg (28 700 lbs)
- Loading area 4.7 - 5.5 m (50 - 59 ft2)
Equipment
- Chains Yes
- Lighting Xenon or LED Yes
- Sprinklers Yes
- Engine/cab heater Yes
- Blinds Yes
- Mobile telephone Yes
- Vacuum pump Yes
- Reversing camera Yes
- GPS/Geoinfo Yes
- Filler pump Yes
- Green oil Yes
- Colour printer Yes
- Full toolkit Yes
- Central lubrication Yes
- Tracks Yes
- Forwarder computer Yes
- Extra load bunk Yes
- Load bunks "Wide load" Yes
- Cab damping system COMFORT LINE Yes
- Dozer blade Yes
- Double telescope Yes
- Balanced bogie system Yes
- Bogie lift Yes
