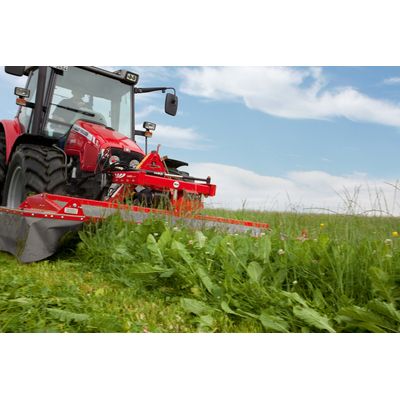

Fella Ramos - Model 260 FP - 310 FP-K - Front-Mounted Oscillating Linkage for Disc Mowers

Working width approx.: 2.50 m – 3.00 m

1. Can be combined with many tractors thanks to the standard 540 and 1000 rpm as well as clockwise and anti-clockwise rotation.
2. The FP-S variant with hydraulic lateral movement makes neat mowing on slopes and with twin tyres possible.
3. 310 FP-K variant with shortened headstock for better ground adaptation and tractor-side spring relief

Optimum ground adaptation
The pivot axle mounted at the centre of gravity ensures optimum ground adaptation (+/- 4.5°). A uniform cutter bar contact pressure can be set using the spring relief on the tractor.

Low load for the tractor
Due to the compact linkage on the FP mower, the centre of gravity is very close to the tractor. This results in a low load for the tractor and machine, and prevents rocking, even when driving quickly on roads.

Uniform swath positioning
The symmetrical number of mower discs ensures that swath is uniformly positioned between the tractor tyres without additional feeder drums or swath drums

Can be combined with all tractors
The gearbox enables a number of different directions of rotation and speeds. 540 and 1000 rpm as well as clockwise and counterclockwise rotation are available as standard.

FP-S variant: Hydraulic lateral movement
The FP-S variant can be moved approx. 20 cm to the left or right, which means that you can mow with ease on slopes and/or with twin tyres without having to leave any forage behind.

310 FP-K variant with shortened headstock
This extremely compact attachment ensures perfect ground adaptation with a pendulum travel of +/- 6.5°. Since the centre of gravity is very close to the tractor, it is possible to operate it even using light tractors.
