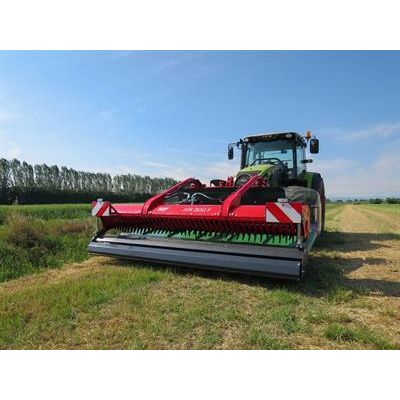

SIP - Model AIR 300 F ALP -Front Mounted Pick-up Rakes
The front-mounted pick-up rakes AIR F deliver the crop aside, thereby avoiding tractor wheels. It is a perfect solution for all types of grass, straw and crop residues.
Most popular related searches
crop residue
tractor hydraulic
tractor wheel
mounted rake
tine
tractor
rotor harvesting combine
grass crop
straw residue
crop data
- SIP AIR series represent the cutting edge swathing technology. The concept is based on the patented flexible pick-up and conveyor belt. The system provides high performance and significantly reduces contamination.
- The robust linkage with a hydro-pneumatic suspension (Hydraulic float) offers excellent responsiveness to changes in terrain.
- Freely rotating discs are positioned very close to the pickup. The trailed spring tines barely touch the ground for less wear and longer lifetime.
- The camless flexible pick-up enables better adaptation to the ground and thus allows cleaner raking without any ash content or other impurities.
- The finger rotor in combination with the pick-up ensures the perfect crop flow. Thanks to a smaller diameter of the pick-up and its slow rotation, we can achieve better forage flow with no turbulence. The result is less loss of leaves.
- The attachment of the anti-loss system consists of one screw with a clam fastening six spring tines. The broken tine remains in the position.
- The flexible pick-up and the finger roller are driven by the tractor hydraulics.
- The direction and speed of the conveyor belt are simply carried out by a hydraulic motor.
- Crop delivery to the left or to the right side of the rake.
- Working width - min. (m) 3,55
- Working width - max. (m) 4,45
- Swath width - min. (m) 0,60
- Swath width - max. (m) 1,50
- Pick-up diameter (m) 0,33
- Rotor dimaeter (finger conveyor rotor) (m) 0,42
- Pick-up width (m) 2,95
- Conveyor belt width (m) 0,70
- Weight (kg) 850
- Required tractor power (kW/HP) 74/100
- Recommended oil capacity (L/min) 60
- Capacity (ha/h) 5,80
- Operating speed (km/h) - up to 20
- Attachment 3-point linkage
- Transport width (m) 3,00
- Transport height (m) 1,20
- Transport lenght (m) 1,60
