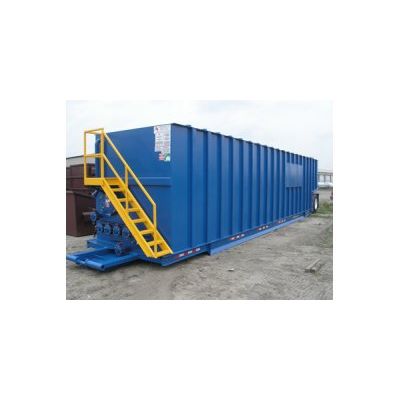

Front Stair Frac Tank

Technical Information

• GT-452
• PRODUCT DATA SHEET
• GAS & OIL STYLE FRAC TANK

DESIGN FEATURES

• Easy-to-Clean Design Reduces Cost
• “V”-Bottom Floor for Complete Clean-Out
• Smooth Wall Interior for Easy Cleaning
• No Corrugations
• No Internal Rods

ADDITIONAL SAFETY FEATURES

• Safety stairway eliminates need for workers to get on top of tank
• Grip Strut steps to prevent slipping
• Handrails and Stairways painted safety yellow for high visibility
• Safe Operation reminder decals applied
• Attached Strapping Charts

WEIGHTS AND MEASURES
Capacity: 500 BBL (21,000 gallons)

Height: 9’-6” (Grade to Roof Deck)
8’-6” (Wall)

Width: 8’-6” (Outside)
8’-0” (Inside)

Length: 46’-0” (Front Nose to Rear)
42’-0” (Tank Body)

Weight: 28,950 lbs.

STRUCTURAL DESIGN

Floor: ¼”thick ASTM A36 carbon steel (V-bottom)

Sides/Ends: ¼” thick ASTM A36 carbon steel

Main Roof: ¼” thick ASTM A36 carbon steel

Wall Posts: 3/16”x3”x6” ASTM A36 formed channel

Roof Members: 3” Structural Channel

FEATURES

• Manways: (2) 22” Dia. w\ Wingnut Closure
• Buna-N Gasket
• 22” Dia. Low-Profile – Top
• Buna-N Gasket
• Relief Valve: 16 oz./in2 pressure setting, 0.4 oz./in2
• vacuum setting; Buna-N seal.
• Valves: 4”- wafer butterfly valve.
• Cast iron body, Buna-N seat & seals, 316 SS
• stem, Nylon coated ductile iron disk w/
• plug and chain.
• Front Drain: 4”-150# flanged w\ butterfly valve
• Rear Drain: 4”-150# flanged w\ butterfly valve
• Front Feed Line: 3” w\ Cap & Chain
• Rear Feed Line: 3” w\ Cap & Chain
• Roof Connections: (1)Vapor Recovery: 4”-150# Threaded Flange & Plug
• (1)Gauging Port: 2” threaded plugged port
• Stairway: 20” Bolt-On w\ Landing – OSHA Compliant
• Axle: 77½” track \ 22,500# Capacity \ 5” Rd
• Suspension: Spring \ 3-LEAF SPRING \ HIGH-ARCH
• FLANGE MOUNT HANGERS \ ¾” SEAT
• 22,500# CAPACITY
• Tires: 11R22.5 \ 14-Ply
• Wheels: Steel \ Hub-Piloted

PAINT SPECIFICATIONS

• Interior Blast: SSPC-SP-10 \ Near White Blast
• Interior Coating: Carboline Phenoline 310
• 100% Solids \ High Performance Epoxy Coating
• 20 – 30 Mils D.F.T.
• Exterior Blast: SSPC-SP-6 \ Commercial Blast
• Exterior Coating: Carboline Carbothane 8812 \ 8845 DTM
• High Gloss Polyurethane
• 3 – 5 Mils D.F.T.

OPTIONS

• Steam Coil Additional Aux. Ports
• HD Lifting Lugs Additional Manways
• External Frac ABS Brake System
• Internal Frac DOT Light Package
• Gel Line Stainless Steel (340 / 316)
• Jet Line Custom Interior Coatings
• Float Gage Custom Exterior Colors
• Feed Lines

TESTS/CERTIFICATIONS

• Tests Performed: Hydrostatic Water Test
• Electrical Function Test
• Brake System Test

To the best of our knowledge the technical data contained herein are true and accurate at the date of issuance and are subject to change without prior notice. No guarantee of accuracy is given or implied because variations can and do exist. NO WARRANTY OR GUARANTEE OF ANY KIND IS MADE BY MANITEX SABRE INC., EITHER EXPRESSED OR IMPLIED.
5420 E STATE RD 8 • KNOX, IN • 574-772-5380
