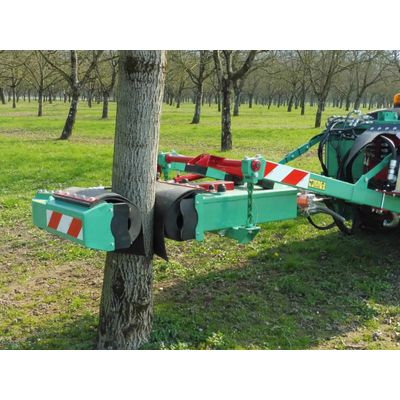

Feucht-Obsttechnik - Model VHY - Fruit Harvesting Trunk Shaker
Shake up to 75 trees per hour with a maximum diameter of 60cm with the trunk shaker VHY. The powerful trunk shaker also reduces pressure points on the trees. The shaker is equipped with an electric control and an oil cooler.
Most popular related searches
fruit harvesting system
trunk shaker
shaker fruit harvesting
fruit harvesting
harvesting system
trunk hydraulic shaker
shaker harvester
fruit shaker
tractor
plum
With hydraulic trunk shakers, you can shake up to 220 trees per hour.
Working with the trunk shaker is extremely simple. The gripper attached to the three-point linkage of a tractor encloses the trunk of the tree to be shaken. The pressure on the rubber jaws attached to the gripper is infinitely variable. A hydraulically driven unbalanced mass shakes the entire tree. Cherries, plums, yellow plums, apples, pears, olives, or nuts can thus be harvested particularly effectively and quickly.
For the shakers, grippers are available for trunks with a diameter of up to 60 cm.
- dynamic start thanks to the hydraulic drive
- all movements are hydraulically driven
- the opening and closing as well as the vibration of the clamp is controlled via a joystick (mounted on the shaker)
- includes electric control and oil cooler
- Length: c300 cm
- Width: 117 cm
- Height: 120 cm
- Site type: High trunk
- max. clamping area: 60 cm
- Shaking performance: up to 75 trees/h
- Weight: 975 kg
- from tractor performance: 80 PS
- Hydraulic oil tank: 140 l
- Particularities:
- Mechanically welded frame construction with adjustable arms
- Shaker head independent of frame, suspended by 2 chains
- Optional
- Hydraulic adjustment of the head alignment
- Hydraulic motor drive
- Joystick with control devices
