Feucht-Obsttechnik - Fruit Harvesting Washing and Calibration Machine

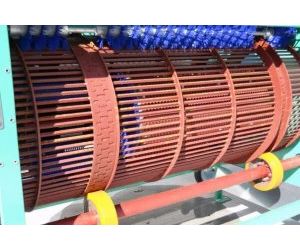

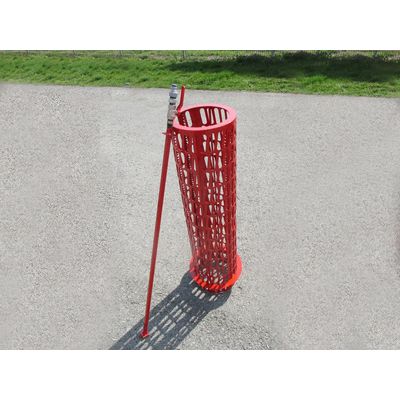

The machine cleans, calibrates, and separates walnuts. The washing and calibration machine cleans and calibrates the nuts according to their size. Up to 95% of the raw shells are separated from the nuts. A washing drum (oval pattern) is used for cleaning. The roller / drum is then exchanged with a round hole sieve for calibrating the nuts. The machine can be calibrated to two different sizes. It is driven by a standard drill. An optional feeding of the nuts or electric motor with 230V is also available.
The washing of the nuts is a decisive step for the further processing of high-quality nuts. By washing the outer nut shell, adhering loose fibres or threads, slime and other organic material are removed from the nut shell. This prevents the growth of any micro-organisms. This means that a high quality of nuts can be guaranteed.
An additional step before the washing is the separation of stones and the removal of raw shells from the nuts. At the beginning of the harvest season, the fresh walnuts are mostly harvested with their raw shells. In order to attain an optimal washing result, the raw shell should be carefully removed from the walnut.
- multi-function combination device for washing, calibrating, and dividing
- easy transport due to light weight
- various calibration sizes possible
- special calibration sizes possible upon request
- Optional: Feeding the nuts or electric motor with 230V
- Length: 160 cm
- Width: 65 cm
- Height: 105 cm
- Weight: 65 kg
- Performance:
- Washing – approx. 100-120 kg/h (20kg/drum every 10 minutes)
- Calibrating – approx. 150 kg/h (in two sizes)
- Scope of delivery:
- 1x washing and calibration machine
- 1x wash drum
- 1x calibration sieve (diameter – 28/30)
- 1x calibration sieve (diameter – 30/32)
- Other sieve sizes are available upon request, e.g. 14/16 or 18/20
- The drill is not included in the scope of delivery
