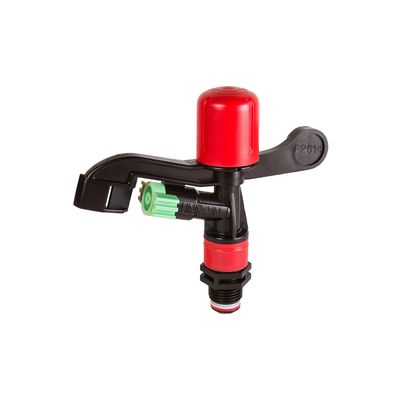

Aspersor - Model F2614 -Full Circle Impact Sprinkler Low and Medium Flow Plastic
FromUnirain SA
Suitable for low and medium flow irrigation under trees. Its lower jet radius doesn`t directly reach foliage, avoiding fruit deterioration. Indicated also for nurseries and greenhouses. Sturdy in design, it features significant improvements, notably its durability and its protected bearing sleeve thread, eliminating the possibility of breakage after impact. Highly recommended for banana plantations for its angle of incidence, anti-UV treatment for exposed parts, protection of delicate parts and accessories, in particular the feed-tube. Available in three formats and suitable for rapid installation anywhere.
Most popular related searches
full circle impact sprinkler
impact sprinkler
full circle sprinkler
banana plantation
banana
irrigation
nursery
greenhouse design
irrigation flow
greenhouse nursery
- Sturdy design. Protective cap against impact and dirt.
- Due to an innovative system, the crown that holds the arm spring allows tension variation to adjust the sprinkler performance to extreme pressure or flow conditions.
- Compression spring protector guided by the bearing to ensure correct sliding between the protector and the sprinkler body.
- Thanks to their bayonet coupling system, the nozzles are easy to change and clean.
- Three different types of water guide vane can be used to achieve the desired coverage and spray balance according to the available pressure.
- Full circle impact sprinkler
- 1/2" male thread.
- 14º Nozzle trajectory angle
- Pressure range: 15-60 PSI
- Nozzle range: 5/64”-9/64”
- High-resistance thermoplastics protected against UV radiation, and stainless steel.
- Color-coded anti abrasive acetal resin nozzles carved in millimetres and inches for a better identification.
- F2614W (low pressure model)
