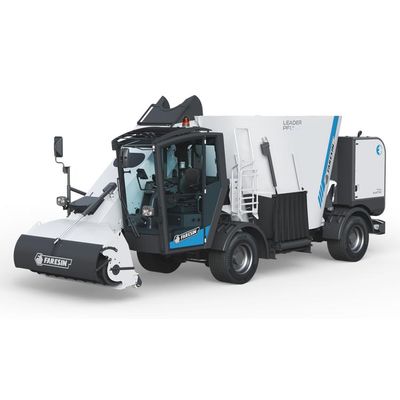

Faresin - Model Leader PF -Full Electric Self-Propelled Mixer Wagon

Battery charging is done with complete flexibility thanks to the Universal Charge system, a single plug-in interface for 220V single-phase and 400V three-phase supplies. The machine also has a system that recovers energy during braking and accelerator release by storing it in the battery and increasing its range.

• Battery 91.3 kW/h
• Up to 4 mixed
• Charging times from 2 - 4 hours

The characteristic geometry of the mixing tub, combined with the special profile of the auger, makes it possible to quickly prepare homogeneous mixes while respecting the fiber’s organoleptic properties. The electric motor, connected to the robust planetary gearbox, provides the right power needed for all types of mixtures thanks to the 8 mixing speeds, which allow the machine’s performance to be matched to the recipe.

• Precise and even cut
• "Cleaning" function of the auger
• Up to two electrically operated exhaust doors
• Accuracy and consistency with electronic weighing and batching system
• Integrated NIR on the tub to constantly monitor the unifeed
• Electrically driven counterknives
• Unloading door opening with hydraulic drive
• Optional unloading belt displacement with electric drive

Tractive force comes from a 51 kW electric motor located in the rear axle, which, via a cardan shaft also transmits motion to the front axle. The system has two mechanical gears with shifting from standstill: 1st= 0 – 10 km/h and 2nd= 0 – 30 km/h.

• 4-wheel drive and steering allowing three types of steering (concentric, crab steering and front-only).
• Hydropneumatic suspension adjustable in height via a control in the cab

The integrated electronic management controls the distribution of power to the various organs, which is dosed as needed to the various utilities, so as not to overload the battery, motors, and inverters, significantly reducing consumption.
In addition, the entire system is monitored by diagnostics that affect all electrical, electronic, and hydraulic parts, including the control instrumentation in the cabin.

Unlike some electrified solutions without a desilter available on the market, Faresin decided to equip the new Leader PF Full Electric with a powerful 2000-mm-wide cutter driven by an electric motor to enable autonomous loading of the various recipe components.

The special shape of the cutter ensures fast flow to the loading channel, respecting the structure and properties of silage, while the reversible knives remove material quickly and accurately. It is also equipped with an automatic anti-clogging system that, in case of clogging, automatically intervenes on the cutter control and immediately restores its operation.

• Load efficiency
• Loading channel 820 mm wide
• Tiller deflector with electric drive
• Milling height 4940 mm

The PF cab, which has always been a strong point of Faresin self-propelled vehicles, allows the operator to work in a position of absolute control, thanks to large glass surfaces and excellent visibility. Onboard controls are ergonomically arranged to intuitively manage all machine functions.

• 10" display for easy navigation between all controls
• Real-time visibility of all machine parameters and data from the integrated NIR analysis system
• Electro proportional joystick
• Optional 360° camera system
