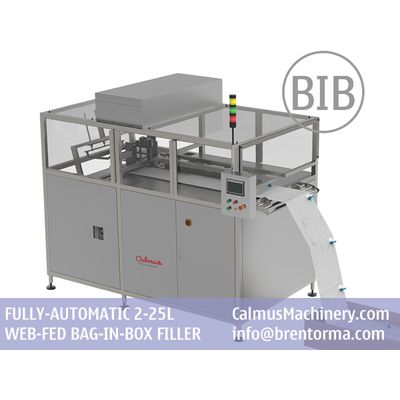

Fully-automated BiB Filling Machine | WEB Fed Bag-in-Box Filler
This fully-automated bag in box filler is designed for filling spouted bags with a wide range of liquids like drinking water, fresh milk, edible oil, liquid egg, post-mix syrup and beverage. It features fully-automated by employing PLC and touch screen control system. The whole process of continuous bags feed, delivering to heads for decapping, vacuumization (optional), nitrogen injection (optional), filling, capping, cutting apart and transiting bags to the conveyor can be completed automatically, no human operation required.
Specifications:
Applicable bags: pre-cut continuous module or WEB type bags, spout-fitted, 2-25 litres.
Filling capacity:
450-510 bags/hour for 5 litres
360-400 bags/hour for 10 litres
250-270 bags/hour for 20 litres
We also supply the whole bag in box filling and packaging line which includes the bag in box filler, box erector, bag inserter and box sealer, fully-automated.
