SAS - Galvanized Steel Cereal Reception Pits

SHARE

Square pits 4 slopes caught in masonry: the most economical solution. 4mx4m (bolted panels), galvanized steel. 20/10th with a square seat of 400 (for the screw) and its slopes at 45 or 60 degrees. Allows a perfect descent of the cereal. Cone volume is 11m3 with the possibility of installation of enhancement (to reach an additional capacity of 14m3 or 25m3. We offer an optional pit grid.

Most popular related searches
cereal
  • Square pits 4 slopes laid on feet in a concrete formwork: they have the same characteristics as those described above, but offer you more advantages. In fact, it is enough to make a concrete formwork and come and deposit it inside. No more waterproofing problems because it is completely insulated from the ground thanks to its feet (suitable very well on wet soils). Other great features: This type of pit allows a complete emptying of the screw (no more worries when changing cereals). In addition, you have the option to uncouple the screw from the pit even when it is full (you access under the pit through a closing hatch, ideal in case of problems on the screw). An optional pit grid can be added.

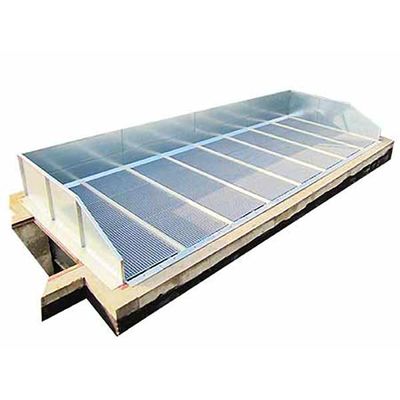

  • Rectangular pits 2 slopes on feet in a concrete formwork: they have a redler at the bottom of the pit. Several models are available: 2x6m, 2x8m, 2x10m or 3x6m, 3x8m, 3x10m. They are equipped with a pit grate (non-rolling). Two transfer rates are available: 30T/hour or 50T/hour.



  • In galvanized sheet metal. 20/10
  • Available in 2 slopes at 60 degrees and 4 slopes at 45 degrees or 60 degrees
  • Different masonry
  • Screw recovery, pallet lifts or chain carriers
  • Depending on the pit type
