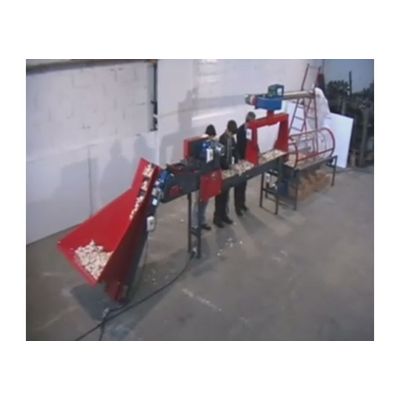

Agrodealer - Model E150 -Garlic Splitting Line Separator

one splitting unit:

• a splitting system covered with rubber, settings following the garlic size
• a set of rubber fingers to finish separating the cloves
• a conveyor belt for manually finishing the splitting
• a suction of the skins placed above the belt 550w, 380v.
• splitting system driven by an electric motor three phased 550w, 380v.
• production of the machine: 200kg/hour with three people.(2 for the selecting and 1 for feeding
• the machine and conditioning the garlic at the other end) length 3.8m width 0.5m height 2m / weight around 300kg

one grading drum

• drum diameter 630mm grade 1: smaller than 10mm grade 2: from 10 to 17mm grade 3: from 18 to 23mm grade 4: bigger than 23mm
• electric motor three phased 250w, 380v
• length 2.5m width 0.9m height 1.25m / weight around 100kg
