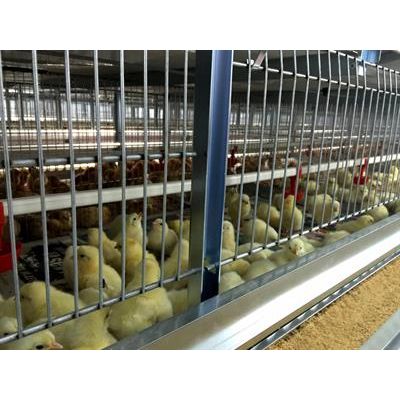

SuperEGG brood breeding cage system has a long working life and space saving design . AV 1200 and AV 1000 models are availabe in wire and sheet metal materials . The depth of a single chamber is 630 mm . The front size of AV1000 is 1000 mm . AV1200 has a front size of 1200 mm . All of the metal and wire parts has a galvanized covering against corrosion with maximum protection . Low-cost cultivation is achieved by the high requirements of the cage in accordance with the technique. The base wire is placed on 8 mm galvanized coated shaft bars . The base of the cage is steel mattress in the scale of 17x17 . Even a one day-old chick can walk around the base floor without an extra peace . There are 2 fixed covers in each eye and one inwardly opening cover . The inward opening cover which is in the middle of each eye makes it easier to reach the chicks spreading to any area of the eye . Covers are easily fixed to self-form pole and can not be opened without human factor .

Feeding

Feeding can be made by chained mechanism and by cart . We prefer cart feeding system fort he best result . The advantages are excellents production results , low maintenance , flexibility and safety . It has a feeding device which you can easiliy adjust the feeding grade. ( 0,5-3 cm ) . Deep feding channel prevents the feed loss. The cart mechanism feeding system prevents the spread of the feed and provides equal feed distribution. Feeders ar efor each floor anda re mounted together via a coloumn. Each feed bucket has a direction channel . Thanks to these channels the feed from the helix is distributed in equal quantities. The working time of the feed car can be adjusted a time clock. SuperEGG chick breeding cage is designed to prevent the fall of feed in to the eyes and mixing in to the fertilizer . Chicks can be feed from the holes measuring 30x40 mm on the feeder from the first day they were born.The feed adjustment plate located in infront of these holes is easily adjusted by a handle along the batery and it allows to feed the chicks from the first until the last day.

Water Supply

The water distribution tanks in the front group of the battery were produced with double outlet for SuperEGG chick breeding cages. Water inlet and outlet are wide enough so that they are not being stopped. There are 2 separate water lines on each floor at the head of SuperEGG chick breeding cage. İn each cage,there are 3 steel nipple in AV1000 model and 4 steel nipple in AV1200 model. Steel nipples do not drip and leak. The nipple in the middle is a moving 360 ° exercise nipple . Water lines can be lifted up and down with 2 cranes, right and left in the front group of the battery. In this way it is both easy to acces water to one-day old chick and pullet .

Manure removal system

The tightly bonded polypropylene manure belts collect manure under each eye of each layer. The band itself is resistant to tearing and heat. These bands are moved by steel drums. When the belts run, the manure drops from the scraper onto the V-shaped manure conveyor belt. Pressure rollers prevent tensioning only when the belts work. With it’s solid water system and cage structure more dry manure is provided . Horizontal and vertical manure conveyors are located behind the set allow the manure to be taken out of the poultry.

Genç - Model AV Series -Brood Breeding Cage Systems

Products Details
