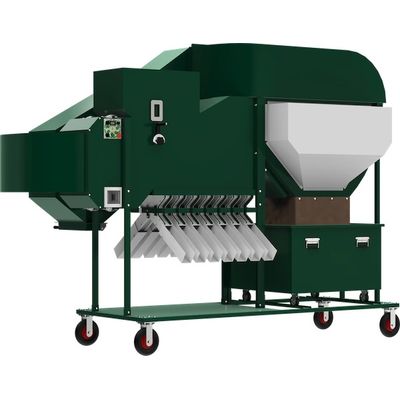

ISM Separator - Model ISM-5 CSC - Grain Cleaner Machine
ISM-5 CSC separator – the ideal solution for small farms. The compact and reliable ISM-5 CSC separator is designed for efficient grain cleaning and seed preparation for sowing. Thanks to its built-in cyclone-sedimentation chamber (CSC), it provides comfort for both indoor and outdoor work. The unit’s small size makes it easy to transport and install, making the ISM-5 CSC an excellent choice for small farms that value efficiency, economy and reliability. Warranty 24 months.
Most popular related searches
grain cleaning
grain cleaning system
grain cyclone
grain damage
grain seed
sowing
seeding
grain separation
seed cleaning
The main difference from other machines of this type is the use of a power unit with a rotor. The use of a rotor in machines of this type provides a number of benefits, such as:
- Minimize airflow loss.
- Reduce energy consumption by three to four times.
- Expand the functionality of the separator.
- Use a frequency converter, which in turn simplifies regulation
- Increases the durability of the electric motor.
- Trays with bag holders, which the separator is equipped with, ensure that the bags are secured under the trays.
- The lack of a vibrating tray excludes grain damage during operation.
- Does not require complicated maintenance.
- Simplicity of design and reliability of the entire machine.
- No lubrication points and replaceable components.
- Fast transition from culture to culture.
- Separation of grain mixtures.
- Productivity during primary grain cleaning: up to 5 tons per hour.
- Productivity during calibration: up to 2.5 tons per hour.
- Electricity consumption: 0,2-0,55 kWh
- Power supply: 220 V, 380 V
- Appointment: Calibration, Primary cleaning
- Type: Cyclone
- Length: 3200 mm
- Width: 1000 mm
- Heights: 2000 mm
- Weight: 374 kg
