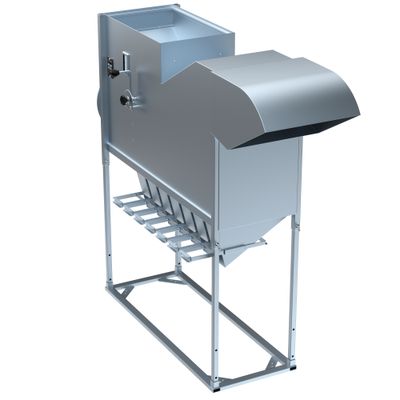

ISM Separators - Model ISM-3 Galvanized - Grain Cleaner Machine for Small Farms
ISM-3 Galvanized – Innovative Grain Separator for Small Farms. With this model, our plant opens a line of aerodynamic sieveless separators for grain cleaning and calibration. The device was designed specifically for small farms with a sowing area of up to 100 ha. With its versatility and innovative design, the ISM-3 Galvanized offers: Telescopic legs that make it easy to adjust the height of the unit, Possibility to equip the separator with wheels. Warranty 24 months.
Most popular related searches
The main difference from other machines of this type is the use of a power unit with a rotor. The use of a rotor in machines of this type provides a number of benefits, such as:
- Minimize airflow loss.
- Reduce energy consumption by three to four times
- Expand the functionality of the separator
- Use a frequency converter, which in turn simplifies regulation
- Increases the durability of the electric motor.
- Trays with bag holders, which the separator is equipped with, ensure that the bags are
- secured under the trays.
- The lack of a vibrating tray excludes grain damage during operation.
- Does not require complicated maintenance.
- Simplicity of design and reliability of the entire machine.
- No lubrication points and replaceable components.
- Fast transition from culture to culture.
- Separation of grain mixtures.
- Productivity during primary grain cleaning: up to 3 tons per hour.
- Productivity during calibration: up to 1.5 tons per hour.
- Electricity consumption: 0,2–0,55 kWh
- Power supply: 230 V
- Appointment: Calibration, Primary cleaning
- Type: Non-cyclone
- Length: 1800mm
- Width: 550 mm
- Heights: 1800mm
- Weight: 110 kg
