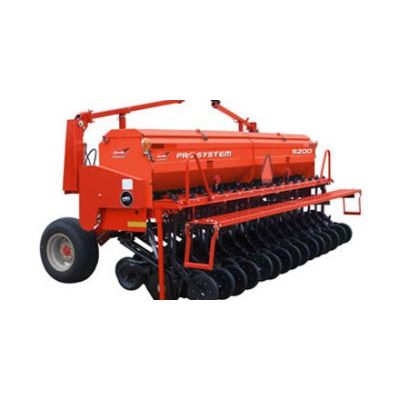

KuhnModel MGD 5200-15 3PT -Grain Drills

SHARE

The 5200 PRO Series grain drills are available in 15` or 20` sizes in 3-point mounts to meet your farm requirements. These drills have seeding capability for conventional or minimum-till with the PRO openers on 6", 7 ½" or 10" spacing; minimum-till or no-till with the HR PRO openers on 7 ½" or 10" spacing. Openers are also arranged with a 6 ½" stagger for excellent soil and residue flow. Kuhn Krause grain drills provide front drive wheel systems and easy-to-adjust transmissions for a wide range of seeding rates. For 3-point models, two 11L x 15" tires both gauge and drive the drill.

Most popular related searches
  • Row spacing (cm) 25. 19. or 15
  • Working width (m) 4.5
  • Working speed (km/h) 8-12
  • Number of rows 18. 24. or 30
  • Row spacing (inches/cm) 10". 7.5". or 6"
  • Number of openers 18. 24. or 30
  • Opener diameter (cm) 34.3
  • Opener diameter (in) 13.5"
  • Maximum hopper capacity (l) 1691
  • Max Hopper Capacity (cu.ft.) 59.7
  • Seed/fertilizer capacity 60%/40%
  • Frame type 3 PT Rigid
  • Number of wheels  2
  • Maximum authorised tractor power (hp) 100
  • Maximum authorised tractor power (kW) 75
  • Transport width (m) 4.9
  • Transport width (feet) 15` 11"
  • Transport Height (m) 2.4
  • Transport Height (feet) 8`
  • Number of sections 1
  • Weight in kg. between 1431 and 1826
  • Weight in lbs between 3154 and 4026
  • Working speed (km/h) between 8 and 12
  • Working speed (m.p.h.) between 5 and 7
