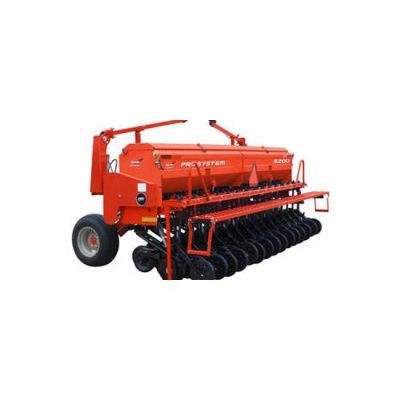

Kuhn - Model MGD 5200-20 3PT -Grain Drills

SHARE

The 5200 PRO Series grain drills are available in 15` or 20` sizes in 3-point mounts to meet your farm requirements. These drills have seeding capability for conventional or minimum-till with the PRO openers on 6", 7 ½" or 10" spacing; minimum-till or no-till with the HR PRO openers on 7 ½" or 10" spacing. Openers are also arranged with a 6 ½" stagger for excellent soil and residue flow. Kuhn Krause grain drills provide front drive wheel systems and easy-to-adjust transmissions for a wide range of seeding rates. For 3-point models, two 11L x 15" tires both gauge and drive the drill.

Most popular related searches

mechanical seed drill

seed production

Seed Cups
PRO - Precision Residue Opener
HR PRO - High Residue Precision Opener
Safe Transport
Standard Equipment
Optional Equipment

Row spacing (cm) 25. 19. or 15
Working width (m) 6
Working speed (km/h) 8-12
Number of rows 24. 32. or 40
Row spacing (inches/cm) 10". 7.5". or 6"
Number of openers 24. 32. or 40
Opener diameter (cm) 34.3
Opener diameter (in) 13.5"
Maximum hopper capacity (1) Max Hopper Capacity (cu.ft.) 2255 79.6
Seed/fertilizer capacity 60%/40%
Frame type 3 PT Rigid
Number of wheels 2
Maximum authorised tractor power (hp) Maximum authorised tractor power (kW) Transport width (m) 120 90 6.5
Transport width (feet) 21` 4"
Transport Height (m) 2.4
Transport Height (feet) 8`
Number of sections 1
Weight in kg. Weight in lbs Working speed (km/h) Working speed (m.p.h.) between 1836 and 2363 between 4047 and 5209 between 8 and 12 between 5 and 7
