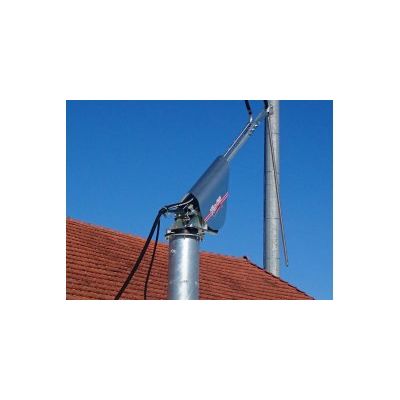

HERON - Model 4000 - Grain Sampler
From Premium Style
HERON 4000 - that is a sampling radius or 2900 mm. A 1.1 kW oscillating up/down-drive gearmotor is controlled through a variable frequence drive (for higher torque and electronic detection of the dumper bottom). Adjustable air/grain balance 0.25 kW swivel drive gearmotor, VFD-controlled, and 3 kW (380V) vacuum turbine with flow inverter, installed at the foot of the sampler for conveying distances up to 60 m, or at the receiver station end for greater distances. Integrated electric enclosure attached to the sampler pillar
-
Most popular related searches
Product Details
'Cycloburo'-style receiver station with 10 l receiving jar. Remote control: easy-to-use button-and-switch HMI or optional joystick control panel. Sample intake through monotube (vacuum) probe or twin-walled probe (core-sampling technology) New 'in-line' sampler arm: the hoses are in line with the sampler arm to avoid being caught under tarp bows. Premium series particulars. Tough machines for large sites. Reinforced gearmotors, swivel plates, and pillar (406 mm instead of 324 mm Ø). A long-term investment
